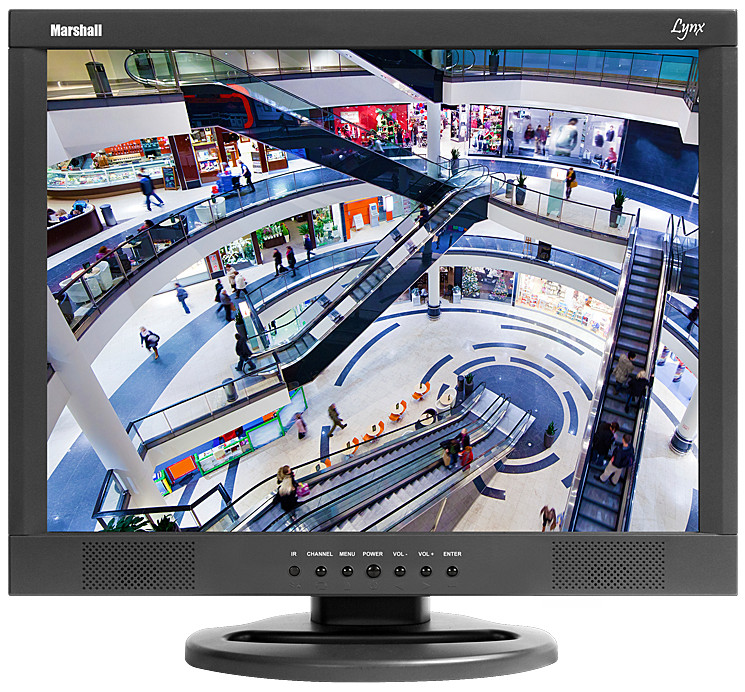

Marshall Electronics M-LYNX-15
15" LCD Lynx Series Monitor


The Marshall Electronics' M-Lynx-15 delivers a stunning 1024 x 768 resolution picture in a 15" screen size.
Learn More
Our Price: $475.00
List Price: $559.00
You save 15%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping


Marshall Electronics M-LYNX-15
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Marshall Electronics' M-Lynx-15 delivers a stunning 1024 x 768 resolution picture in a 15" screen size. Using advanced video technologies such as 3D dynamic digital compensation, 3D comb filter, and bandwidth auto compensation, this sturdy workhorse is well suited for a variety of audio/visual, security and industrial applications. Additional features include auto-clock frequency phase correction, built-in speakers and a user-friendly OSD that makes set-up and operation quick and easy.

Marshall Electronics M-Lynx-15 Features:

  • 15" 4:3 LCD Monitor
  • Brightness: 350cd/m²
  • Contrast: 450:1
  • Inputs: CVBS (2), VGA, HDMI
  • 3D Comb Filter
  • Dynamic Noise Reduction

Marshall Electronics M-Lynx-15 Specifications:

  • Panel:
    • Panel Size: 15" Diagonal
    • Resolution: 1024 x RGB x 768
    • Aspect Ratio: 4:3 Native
    • Type: LCD
    • Panel Brightness: 300 cd/m²
    • Contrast: 450:1
    • Color Gamut: YUV, RGB
    • Viewing Angles: (CR>=10) 170°/150°
    • Backlight type: LED
  • Features:
    • Video Formats: NTSC/PAL
    • Loss of Input Curtain: Yes
    • Self-Sensing: Yes
    • Re-clocked/Re-Shaped: Yes
  • Input Connectors:
    • CVBS (2): Yes
    • S-Video: Yes
    • HDMI: Yes
    • VGA: Yes
  • Output Connectors: CVBS (2)
  • Controls:
    • Audio: Yes
    • Input Status Display: Yes
    • Controls on front Panel: Yes
    • User-Defined Function Buttons: Yes
    • Desk Top/Rack Ears: Yes
  • Power:
    • Voltage: AC100V ~ 230V 50 ~60Hz
    • Consumption Max: 32W
    • Power Switch: Yes
  • Compliance: CE approved
  • Operating Temperature: 0° C ~ 40° C
  • Dimensions: 356mm x 298mm x 67mm
  • Weight (Main Body): 4.5 kg
  • Vesa Mount: 75/100 mm
