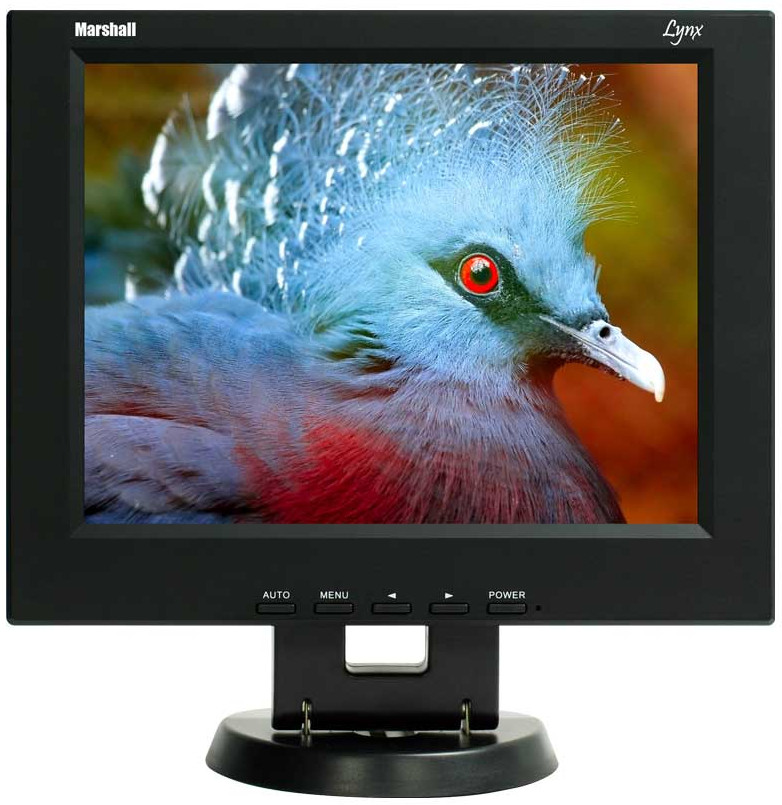

Marshall Electronics M-Lynx-10
10" LCD LYNX Series Monitor

OUR PART #:  M-LYNX-10

Ideal for mobile applications and tight spaces, the Marshall Electronics 10" Lynx LCD monitor offers 800 x 600 pixel resolution with digital image processing...
Learn More
Our Price: $351.25
List Price: $414.00
You save 15%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Marshall Electronics M-Lynx-10
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Ideal for mobile applications and tight spaces, the Marshall Electronics 10" Lynx LCD monitor offers 800 x 600 pixel resolution with digital image processing, a digital comb filter and clock-frequency auto correction for a crisp, clear picture.  With a slim, portable design, the M-Lynx-10 is an excellent standard definition monitor for audio/visual, security, and industrial applications.

Marshall Electronics M-Lynx-10 Features:

  • 10" 4:3 LCD Monitor
  • Brightness: 250cd/m²
  • Contrast: 450:1
  • Inputs: Composite, S-Video, VGA
  • 2D Comb Filter
  • Dynamic Noise Reduction

Marshall Electronics M-Lynx-10 Specifications:

  • Panel:
    • Number of Panels: 1
    • Panel Size: 10" diagonal
    • Resolution: 800 x 600
    • Aspect Ratio: 4:3
    • Type: LCD TFT
    • Brightness: 250 cd/m²
    • Contrast: 450:1
    • Color Gamut: YUV, RGB
    • Viewing Angles: (CR>=10) 150° / 140°
    • Backlight type: LED
  • Features:
    • Video Formats: NTSC/PAL
    • Loss of Input Curtain: Yes
    • Blue Screen: Yes
    • Self-Sensing: Yes
    • Re-clocked/Re-Shaped: Yes
  • Video Input Connectors:
    • CVBS: Yes
    • VGA: Yes
    • S-Video: Yes
  • Video Output Connectors:
    • CVBS: Yes
    • S-Video: Yes
  • Audio Inputs: 2-channels RCA input/output
  • Audio Output:
    • RCA output: Yes
    • Controls on front Panel: Yes
    • Desk Top Stand: Yes
  • Power:
    • Voltage: DC 12V
    • Consumption: 10W
    • Power Switch: Yes
    • Connector: RCA
  • Compliance: CE approved
  • Operating Temperature: 0° C ~ 40° C
  • Dimensions: 10.5" x 8.4" x 1.6"
  • Weight (Main Body): 3.3 lbs
