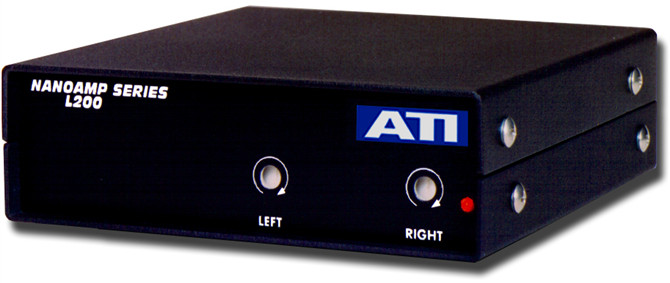

Audio Technologies Inc. L200
NANOAMP Dual Line/Buffer Amplifier without Power Supply

OUR PART #:  L200

Audio Technologies Inc.'s NANOAMP L200 Dual Line/Buffer Amplifier is an inexpensive high-performance amplifier, which is ideal as a gain block, attenuator...
Learn More
Our Price: $314.37
List Price: $325.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Audio Technologies Inc. L200
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Audio Technologies Inc.'s NANOAMP L200 Dual Line/Buffer Amplifier is an inexpensive high-performance amplifier, which is ideal as a gain block, attenuator, impedance converter and signal splitter.  It can also be configured as a stereo to mono summing amplifier with the addition of an internal jumper.  The inputs provide a balanced 40k ohm bridging impedance for line levels up to +24dBm.  Two screwdrivers adjust, full range gain controls provide 28dB gain at full clockwise rotation, unity gain at twelve o'clock and a smooth audio taper to full off.

Features:

  • +22dBm low distortion outputs drive balanced or unbalanced 600 ohm lines.
  • The L200 uses rugged XLR-type input and output connectors.
  • Quiet external UL approved 24VDC wall mount power modules comfortably drive several NANOAMPs
  • Battery packs and DC to DC converters for portable use are also available.
  • Stack them or rack mount one, two or three in only 1-3/4"
