Innovox Audio ULA-16.16-WHT 500W Uniform Line Array Block in White

The Innovox Audio ULA 16.16 is a very slim profile continuous line array (3" x 6" in cross section) with a uniform 120 by 8 degree vertical coverage pattern. Each ULA 16.16 employs sixteen 3.5" long-excursion LF drivers and sixteen precision HF ribbon elements with a passive crossover network.

It has been designed to be used both as a single loudspeaker for medium-throw application, and stacked in multiples to create large arrays for very long-throw applications.

Innovox Audio ULA 16.16 Specifications:

• Frequency Response: 120 Hz - 20 kHz
• Sensitivity: 94dB @ 2.83 volts / 1M
• Impedance: 8 ohms
• Power Handling: 500W long-term (AES-2)
• Max Output: 120dB long-term; 126dB peak
• Nominal Coverage Angles: 120 x 8 degrees
• Dimensions: 58.63" H x 6" W x 3" D
• Weight: 29.5 lbs
• Components & Loading: (16) 3.5" long-excursion LF drivers; (16) 3.2" ribbon HF drivers
• Cabinet Type: Sealed enclosure

Note:

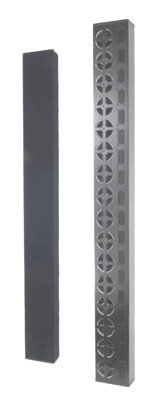

Product shown in image is for illustrative purposes only - actual product is white.
