TOA HS-1500WT 15" Coaxial Controlled Directivity Speaker, White

OUR PART #: HS1500WT MFR #: HS-1500WT

Copied to clipboard

The TOA HS-1500WT is an indoor 15" 2-way speaker designed to provide high quality sound and reliable performance for restaurants, retail, conference rooms... ...Read more

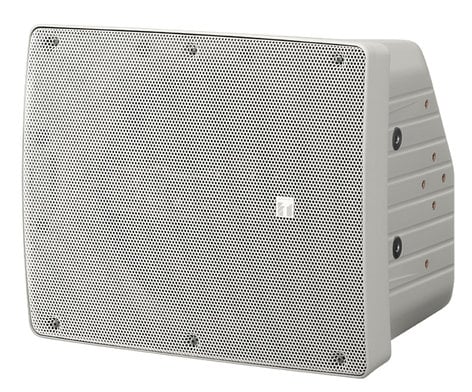

TOA HS-1500WT 15" Coaxial Controlled Directivity Speaker, White Image 1
TOA HS-1500WT 15" Coaxial Controlled Directivity Speaker, White
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

The TOA HS-1500WT is an indoor 15" 2-way speaker designed to provide high quality sound and reliable performance for restaurants, retail, conference rooms, lecture halls, schools, sports facilities, houses of worship and audio/visual applications. Features include two-way bass-reflex design, rugged polypropylene enclosure with a 15" low frequency driver and coaxial tweeter array incorporating six balanced dome tweeters.

The HS Series speakers provide narrow-directivity control (90° horizontal x 40° vertical). The model includes a user attachable lifting handle and rubber feet for straight positioning.

Includes:

  • Handle 1x
  • Handle fitting bracket 2x
  • Handle mounting screw 2x
  • Rubber foot 2x
  • Rubber foot mounting screw 2x

Features:

  • Coaxial tweeter array incorporating six balanced dome tweeters:
    • Narrow-directivity control (90° horizontal x 40° vertical)
  • Built-in overload protection circuitry for the tweeters
  • Twin input terminal connections:
    • SPEAKON terminal for quick temporary installation
    • Screw terminals recommended for long-term installation
  • Compact light weight enclosure
  • Wedge-shape enclosure enables use as a floor monitor
  • Screwdriver-adjustable impedance selection:
    • Low impedance (8Ω)
    • 70 / 100Voperation (70V selectable 60W, 30W, 15W or 7.5W; 100V selectable 60W, 30W or 15W)
  • Provided attachable accessories:
    • Handle for easy transportability
    • Rubber feet for straight positioning
  • Five-year warranty

Specifications:

  • LF Driver: 15” cone woofer
  • HF Driver: Coaxial tweeter array incorporating six balanced dome tweeters
  • Crossover: 3kHz
  • Power Handling:
    • 300W (cont. PGM, 8Ω)
    • 100W (pink noise, 8Ω)
    • 70V selectable (60W, 30W, 15W, 7.5W)
    • 100V selectable (60W, 30W,15W)
  • Sensitivity (1W @ 1m): 98dB SPL
  • Dispersion: 90° H x 40° V
  • Dimensions: 17.8"W x 22"H x 15.75"D
  • Enclosure: Sealed type
  • Rated Input: 60W (High Impedance)
  • Power Handling Capacity: Continuous pink noise: 100W (Low Impedance)
  • Continuous program: 300W (Low Impedance)
  • Rated Impedance: 8Ω
    • 100V line: 170Ω (60W), 330Ω (30W), 670Ω (15W)
    • 70V line: 83Ω (60W), 170Ω (30W), 330Ω (15W), 670Ω (7.5W)
  • Frequency Response: 60 - 20,000Hz
  • Directivity Angle: Horizontal: 90゜, Vertical: 40゜
  • Speaker Component: Low frequency: 38cm (15) cone-type
  • Input Terminal NEUTRIK NL4MP Speakon and M4 screw terminal, distance between barriers: 9mm (0.35)"
  • Operating Temperature: -10℃ to +50℃ (14°F to 122°F)
  • Finish
    • Enclosure: Polypropylene, white
    • Punched net: Surface-treated steel plate, white
  • Weight: 14kgs (30.86lbs)
