Mogami W2549-BY-FOOT-BLACK
2-Conductor, 22G Bulk Mic Cable Wire (Black, Priced Per Foot)

OUR PART #:  W2549-BY-FOOT-BLACK

NOTE: This product is available per foot of wire at the price list.  Please consult your sales representative for more information.
Learn More
Our Price: $1.50
List Price: $1.80
Save up to 57% when you order by quantity!
  • Buy 50: $1.20 each.
  • Buy 100: $0.90 each.
  • Buy 300: $0.78 each.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Mogami W2549-BY-FOOT-BLACK
Qty:
Similar Products

NOTE: This product is available per foot of wire at the price list.  Please consult your sales representative for more information.

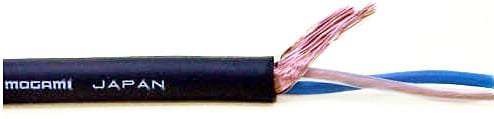

Mogami Cable's W2549 has been designed using their Neglex OFC to provide the highest quality audio reproduction in any recording application.  It features #22AWG conductors and extremely low capacitance.  The 100% coverage served shield and twisted pair construction is excellent at preventing noise caused by electromagnetic interference.  This cable is recommended when extended high frequencies are important or where long cable runs may be needed.

Specifications:

  • Conductor:
    - Details: 30/0.12OFC
    - Size: 0.339 mm2 (#22 AWG)
  • Insulation:
    - Overall Diameter: 1.9Ø mm (0.075")
    - Material: XLPE(Cros-Linked Polyethylnene)
    - Color: Blue/clear
  • Shield: Served Approximately 64/0.18TA
  • Jacket:
    - Overall Diameter: 6ì mm (0.236")
    - Material: FlexiblePVC
    - Color: Black/Red/Yellow/Green/Blue
  • Roll Sizes: 200 M (656 ft.)
  • Weight per 100 M roll: 11 kg

Electrical & Mechanical Characteristics:

  • DC Resistance at 20°C:
    - Inner Conductor: 0.058 W/m (0.018 W/ft.)
    -Shield Conductor: 0.013 W/m (0.004 W/ft.)
  • Capacitance at 1 kHz, 20°C:
    - K0: 76pF/m (23pF/ft.)
    - K1: 11pF/m(3.4pF/ft.)
  • Inductance: 0.8 µH/m (0.24 µH/ft.)
  • Electrostatic Noise*: 50 mV max.
  • Electromagnetic Noise at 10 kHz*: 0.15 mV max.
  • Microphonics at 50kW load*: 30 mV max.
  • Voltage Breakdown: Must withstand at DC 125V/15 sec.
  • Insulation Resistance: 100,000 MW x m Min. at DC 125V, 20°C
  • Flex life: 14,500 cycles
  • Tensile Strength: 657 N
  • Emigration: Non-emigrant to ABS resin
  • Applicable Temperature: -20°C 3/4 +70°C(-4°F 3/4 +158°F)
    *Using standardtesting methods of Mogami Wire & Cable Corp.
