Telex TR82N
2-Channe Intercom System with A4M Connectors in UHF Narrow


The TR-82N is a 2-channel, binaural UHF frequency-agile wireless beltpack for use with the BTR-800.
Learn More
Selected Model Price: $2,767.00
Write the first review.
Telex TR82N
Select a Model: (shipping times are approximate)

Related Products

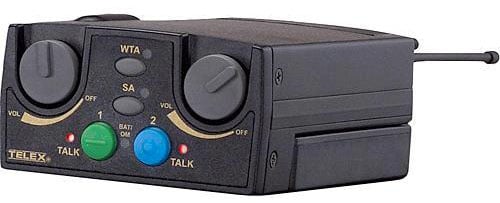

The TR-82N is a 2-channel, binaural UHF frequency-agile wireless beltpack for use with the BTR-800. The unit features a durable met-cast magnesium case, an LCD based graphical user interface, and stage announce activation.

The TR-82N is designed with several advanced technology functions, including wireless talk around (ISO) activation, the patented Enhanced ClearScan channel search, detachable antennas and an auto-sensing headset connector that automatically switches between electret and dynamic headset mics. The unit has an A4M headset jack and works in the A2 frequency range.


  • Narrow Band wireless provides 25kHz of modulated band width which allowmore users per channel in the cramped UHF spectrum
  • Rugged all-metal 2-channel wireless UHF beltpack with detachable, colorcoded 1/4 Wave antennas on stud type connectors
  • Huge selection of UHF frequencies in 18 MHz operational bands, 24 factorypreset groups
  • 1000' line-of-sight range, AA or NimH rechargeable battery operation withup to 12-hr. continuous battery life
  • Dual, latchable A and B channel talk buttons, full LED complement for allfunctions
  • Cast magnesium construction for increased durability, lighter weight
  • Proprietary Intelligent Power Control decreases output power of beltpackin closer proximity to Base Station by 10dB, eliminates Base Station front-endoverload and desensing
  • Top panel Battery/Overmodulation and Talk LED lights
  • Automatic dynamic or electret mic type detection
  • Menu and Set, Up and Down rear panel parameter and navigation buttons withLCD display for simplified control
  • Individual On/Off and Volume control knobs, talk buttons with latchingfunction with easy top panel access


  • Transmitter Type: Synthesized, 712 Channels
  • Receiver Type: Dual Conversion Superheterodyne, Synthesized, 712 Channels,FM
  • RF Frequency Range: A2
  • Transmit Power: 50mW max.
  • Microphone Input: A4M, 7mV sensitivity
  • Antenna Type: 2 x 1/4 Wave
  • Local Headset Output: 40 mV Output into 600 Ohms(1% distortion)
  • Frequency Response: 300Hz - 8kHz
  • Power Requirements: 6 x AA Alkaline; 1 x NiMH Rechargeable
  • Battery Life: AA: 12 hrs.(Continuous); NiMH: 11 hrs.(Continuous)
  • Dimensions: 3.75 x 5.05 x 1.65" (95 x 128 x 42mm)
  • Weight: 21 oz (595.3 g)
Telex TR800-71306XXX UHF Wireless Beltpack Transceiver
Telex TR800-71306XXX UHF Wireless Beltpack Transceiver
Two channel UHF frequency agile wireless beltpack for use with the BTR-800. All metal cast magnesium case, an LCD based graphical user interface, stage announce activation, wireless talk around (ISO) activation, Enhanced ClearScan™, ...
