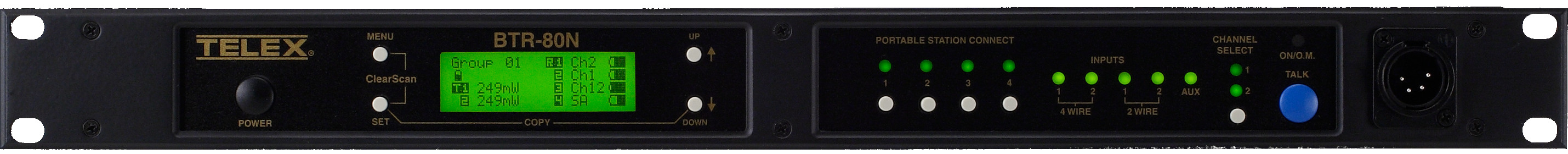

Telex BTR-80N
Narrow Band UHF 2-Channel Wireless Synthesized Intercom Base Station

OUR PART #  BTR80N

Selected Model Price: $4,636.07
List Price: $6,179.00

Save up to 25%! (Low Price Guarantee)
Select model: (shipping times are approximate)

Recommended Accessories

The Telex BTR-80N Narrow Band wireless intercom system offers the most comprehensive, user friendly and versatile set of features available in wireless intercom systems anywhere in the world.  Providing an unprecedented 25 KHz of modulated band width, the BTR-80N Narrow Band system will allow more users per channel in the cramped UHF spectrum.  Combining the award-winning performance of the BTR-800 wireless intercom system with revolutionary Narrow Band technology and additional innovative features, the BTR-80N is the best-performing, most versatile wireless intercom system ever made.

While providing excellent audio performance, the Narrow Band system is based on the award-winning and world-leading BTR-800 wireless intercom system and provides all of the standard features of the BTR-800 system, such as DSP digital processing and Intelligent Power Control, plus many more.  The BTR-80N Narrow Band systems offers up to four full duplex wireless TR-80N or TR-82N beltpacks per
base station (beltpacks sold separately).  An unlimited number of additional beltpacks can be added in half duplex operation.  Additional features include selectable transmitter power output, selectable receiver squelch control, RF meter display on base station and beltpack displays, remote battery indicators on base station display, low battery tone indicator on beltpack, AC or DC power input on base station, simultaneous 2-Wire and 4-Wire operation and many, many more.

Features:

  • UHF Operation - The BTR-80N operates in the UHF band from 482 to 698 MHz and operate in specific 18 MHz frequency bands.  An industry-leading 27 frequency band combinations are available to order.
  • Frequency Agile - Choose from 1440 user selectable frequencies in 25 KHz increments or select frequency plans from preset intermodulation avoiding groups.  The independent 18 MHz frequency bands provide 720 TX and 720 RX selectable frequencies.
  • Selectable Output Power - The BTR-80N provides a user-selectable transmit output power.  The BTR-80N has a maximum output power of 249 mW down to 10 mW, with an additional setting to turn OFF transmit power to each individual transmitter.  The TR-80N and TR-82N have a maximum output power of 100 mW down to 5 mW, with an additional setting to turn on the AUTIo "Intelligent Power Control" feature to provide outstanding near-far operation.
  • Engineering-Defined Frequency Plans - Each Narrow Band system comes with 36 engineering selected, intermodulation-avoiding groups of channel plans that allow even the most uninitiated user to get the system operational right out of the box.
  • Flexible Number of Beltpack Users per Base Station — In full-duplex operation, the BTR-80N will support up to 4X TR-80N or TR-82N beltpacks.  By placing TR-80N or TR-82N beltpacks in "Push-to-Transmit" operation (half-duplex), you can expand your system to multiple users on one BTR-80N base station.  When the TR-80N or TR-82N are placed in "Push-to-Transmit" operation, the intelligence of the narrow band system provides a "First-On-Latch-Out" feature that will not allow the beltpacks to interfere with each other when operating on the same frequency.  This feature provides future expansion possibilities and will allow multiple users on the same channel whose primary function is to listen all the time and talk infrequently.
  • Two-Channel Intercom Access - Hardwired intercom channels that are run to the BTR-80N base station can be 2-wire (Party-Line) or 4-wire (digital matrix). These intercom inputs to the BTR-80N can be set up to be individual per channel or they can be mixed on a channel. Individual adjustment for IN and OUT level control are provided in the BTR-80N front panel user interface.
  • Enhanced Clearscan™ Frequency Scan and Auto Selection— This powerful frequency scanning and selection feature is easily activated and progress is easily monitored on the TR-80N, TR-82N and BTR-80N display screens.  Results are provided and users have the option to review, accept or reject the results.  This dynamic feature allows system frequency selection and setup in just minutes in a new or unknown venue.
  • Battery Options - The TR-80N and TR-82N beltpacks canoperate from standard alkaline AA batteries or from the optional NiMH batterypacks.  Operation on alkaline batteries provides up to 12 hours ofcontinuous duty and up to 10 hours on NiMH. Drop-in chargers are available insingle and four-gang configurations.

Additional Features:

  • User-adjustable receiver squelch control
  • RF meter on BTR-80N, TR-80N and TR-82N
  • Beltpack battery gauge on BTR-80N display
  • Ability to turn off remote beltpack transmitter from base station
  • BTR-80N is easily adapted for two transmitter output
  • BTR-80N is designed for AC or DC power input
  • Auxiliary audio input is assignable with level control
  • "Fifth person" talk/listen user station at the BTR-80N base station
  • Wireless talk-around - WTA (broadcast ISO)
  • Stage announce (SA) output with relay closure
  • Intelligent power control
  • TR-82N dual listen operation
  • Cast magnesium beltpacks
  • Beltpack low battery indicator with tone warning

Specifications:

  • RF Frequency Range (USA): 482–698 MHz (TV 16 to TV 36 and TV 38 to TV 52)
  • RF Frequency Range (Outside USA): 482–722MHz
  • BTR-80N Power Requirements (AC and DC):
    • 100–240VAC,50-60Hz
    • 12–15 Volts DC
  • Temperature Range: -4°F to 130°F (-20°C to 55°C)
  • Frequency Response: 200 Hz to 4 kHz
  • 4-Wire Input and Output: Level Adjustable (2Vrms typical)
  • AudioCom.RTS 2-Wire Intercom:
    • Input and Output: Level Adjustable (1Vrms typical)
    • Line Impedance: 300 Ohms
  • RTS 2-Wire Intercom:
    • Input and Output: Level Adjustable (0.775Vrms typical)
    • Line Impedance: 200 Ohms
  • Clear-Com TW Intercom:
    • Input and Output: Level Adjustable (1Vrms typical)
    • Line Impedance: 200 Ohms
  • Auxiliary Audio Input: Adjustable (2Vrms typical)
  • Auxiliary Audio Output: Adjustable (2Vrms into 600 Ohms)
  • Stage Announce Output: Adjustable (2Vrms typical at rated deviation into 600 Ohms)
  • Stage Announce Relay: Dry contact, rated at 1 Amp, 24V Max
  • Transmitter Type: Synthesized Transmitters, 720 channels each
  • Transmit Power Selectable: 249mW–10mW
    • Modulation Type: FM
    • Deviation: 4kHz
  • Receiver Type: Triple Conversion Superheterodyne
    Four (4) Independent IF’s
    720 Channels Each
  • RF Sensitivity: <0.6 micro volts for 12dB SINAD
  • Squelch Threshold: Adjustable
  • Squelch Quieting: 90dB
  • Distortion: 1% at full deviation
  • Dimensions: 19.0" W x 1.72" H x 13.8" D (48.3 x 4.4 x 35.1 cm)
  • Weight: 7 lbs, 5 oz (3.3 kg)
  • Shipping Dimensions: 22.5" W x 5" H x 16.5" D (57.2 x 12.7 x 41.9 cm)
  • Shipping Weight: 1 lb, 3 oz. (5.1 kg)
