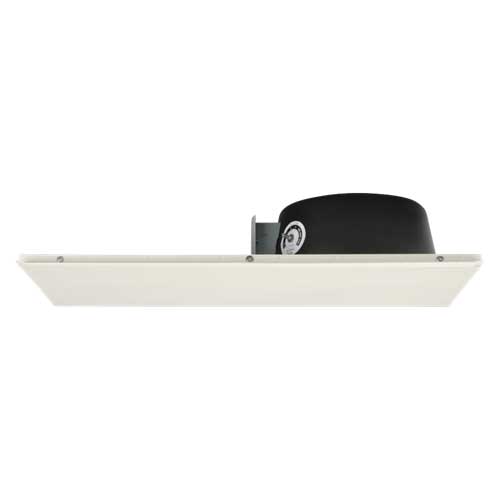

Atlas Sound DT12
Drop-In Speaker Enclosure, 1' x 2'

OUR PART #:  DT12

Installer friendly Atlas Sound DT12 provides clear paging and background music in a labor saving package.
Learn More
Our Price: $79.99
List Price: $99.99
You save 20%!
Write the first review.

This product must be purchased in multiples of 2

Atlas Sound DT12
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!
Related Products

Installer friendly Atlas Sound DT12 provides clear paging and background music in a labor saving package. Ideal for use in shopping malls, department stores, and anywhere large quantities of loudspeakers are to be utilized.

The Atlas Sound DT12 1' x 2' drop in speaker system simplifies loudspeaker installation by providing an all in one speaker package in acoustic ceiling grids. The system includes the speaker/transformer, enclosure, and grille with an external mounted tap selector switch. The compact 2-unit master pack is designed to save warehouse space. You will enjoy clear, crisp paging and background music from the installation friendly DT12 without compromising building cosmetics.

Features

  • All in one, pre-assembled unit drops into ceiling grids to reduce installation time and costs
  • Integral E.O. Box for conduit
  • Attractive white mesh grille blends in with most acoustic ceiling tiles
  • Standard 8" speaker with built-in 25V/70.7V transformer
  • 8 ohm operation via transformer bypass setting on tap selector switch
  • External tap selector switch reduces wiring errors
  • UL1480/UL2043

Specifications

  • Frequency Response: 85Hz - 8kHz (+/-5dB)
  • Sensitivity (1W/1m): 97dB
  • Dispersion: 105┬░ - 2kHz octave band (-6dB)
  • Woofer: 8" dual cone
  • Magnet Weight: 10 oz
  • Dimensions (L x W x D): 23 7/8" x 12 7/8" x 4 1/2"
  • Weight: 9.5 lbs
  • Color: White
2' x 2' Lay In Loudspeaker Adapter Kit
Atlas Sound DT12-2X2ADP 2' x 2' Lay In Loudspeaker Adapter Kit
The Atlas Soud DT12-2X2ADP is a  2'x2' lay in speaker adapter kit that converts the DT12 and IDT12(-CK) into a 2'x2' lay in loudspeaker. The DT12-2X2ADP includes two filler panels that allow the DT12 or IDT12(-CK) to be incorporated ...
49.99 62.99 21
