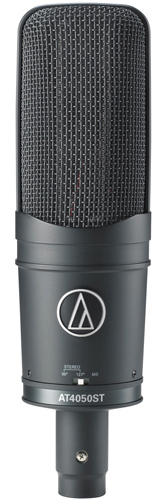

Audio-Technica AT4050ST
Stereo Condenser Side Address Microphone with 5-Pin XLR-M

OUR PART #:  AT4050ST

Offering the realism of a live sound field...
Learn More
Our Price: $1,299.00
Write the first review.
Audio-Technica AT4050ST
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

Offering the realism of a live sound field, the Audio-Technica AT4050ST is a side-address condenser with cardioid and figure-of-eight elements configured in a Mid-Side arrangement. This innovative stereo condenser allows sound recordists the choice of selecting a left-right stereo output or choosing discrete Mid-Side signals for later manipulation, a remarkable flexibility. The microphone’s dual-diaphragm capsules maintain precise polar pattern definition across the full frequency range. Its transformerless circuitry virtually eliminates low-frequency distortion.

Audio-Technica AT4050ST Features:

  • Innovative side-address Mid-Side stereo microphone engineered for professional recording, broadcast and sound reinforcement
  • Independent cardioid and figure-of-eight condenser elements
  • Switch selection of Mid-Side mode and two internally matrixed stereo modes
  • Dual-diaphragm capsules maintain precise polar pattern definition across the full frequency range of the microphone
  • Transformerless circuitry virtually eliminates low-frequency distortion and provides superior correlation of high-speed transients
  • The 2-micron-thick, vapor-deposited gold diaphragms undergo a five-step aging process so that the optimum characteristics remain constant over years of use
  • Open acoustical environment of the symmetrical housing assembly minimizes unwanted internal reflections
  • Integral 80 Hz high-pass filter switch and 10 dB pad switch
  • State-of-the-art design and manufacturing techniques ensure compliance with A-T's stringent consistency and reliability standards
  • Custom shock mount provides superior isolation

Audio-Technica AT4050ST Specifications:

  • Element:  Externally-polarized (DC bias) condenser
  • Polar Pattern:  Cardioid, and Figure-of-eight
  • Frequency Response: 20-18,000 Hz
  • Low Frequency Roll-Off:  80Hz, 12dB/octave
  • Open Circuit Sensitivity:  Stereo 90°: -42 dB (7.9 mV) dB re 1V at 1Pa Stereo 127°: -41 dB (8.9 mV) dB re 1V at 1 Pa
    Mid: -36 dB (15.8 mV) dBre 1V at 1 Pa
    Side: -36 dB (15.8 mV) dB re 1V at 1 Pa
  • Impedance:  50 ohms
  • Maximum Input Sound Level:  Mid and Side: 149 dB SPL, 1 kHz at 1%T.H.D.;
    159 dB SPL, with 10 dB pad (nominal)
  • Noise:  Stereo 90°: 25 dB SPL
    Stereo 127°: 16 dB SPL
    Mid: 15 dBSPL
    Side: 17 dB SPL
  • Dynamic Range (typical): Mid: 134 dB, 1 kHz at Max SPL
    Side: 132 dB, 1kHz at Max SPL
  • Signal-To-Noise-Ratio: Stereo 90°: 69 dB, 1 kHz at 1 Pa
    Stereo127°: 78 dB, 1 kHz at 1 Pa
    Mid: 79 dB, 1 kHz at 1 Pa
    Side: 77 dB, 1 kHzat 1 Pa
  • Phantom Power Requirements: 48V DC, 6.4 mA typical (both channels total)
  • Switches: 90°, 127°, M-S; Flat, roll-off;
    10 dB pad (nominal)
  • Weight:  517 g (18.2 oz)
  • Dimensions: 193.0 mm (7.60") long, 53.4 mm (2.10") maximum body diameter
  • Output Connector:  Integral 5-pin XLRM-type
  • Furnished Accessories:
    • AT8449 shock mount for 5/8"-27 threaded stands
    • 5/8"-27 to 3/8"-16 threaded adapter
    • Microphone dust cover
    • Protective carrying case
  • Audio-Technica Case Style:  R1
