Audio-Technica AT4047MP Large-Diaphragm Multi-pattern Condenser Microphone

OUR PART #: AT4047MP MFR #: AT4047MP

Copied to clipboard

The AT4047MP from Audio-Technica uses modern technology to combine vintage sound with your choice from 3 selectable polar pickup patterns: omnidirectional, cardioid... ...Read more

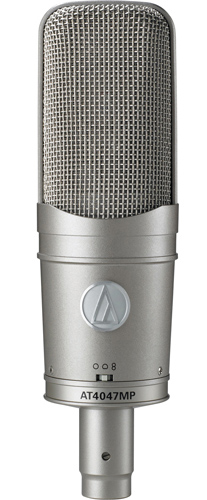

Audio-Technica AT4047MP Large-Diaphragm Multi-pattern Condenser Microphone Image 1
Audio-Technica AT4047MP Large-Diaphragm Multi-pattern Condenser Microphone Image 2
Audio-Technica AT4047MP Large-Diaphragm Multi-pattern Condenser Microphone Image 3
XLkpaq0KeX8?rel=0
2 Videos
Audio-Technica AT4047MP Large-Diaphragm Multi-pattern Condenser Microphone
Our Price: $899.00

SPECIAL FINANCING AVAILABLE

Synchrony Music & Sound Card
$25/mo* with 36 month financing. ‡
Limited Time. Learn How
Item usually available to ship in 9-12 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

The AT4047MP from Audio-Technica uses modern technology to combine vintage sound with your choice from 3 selectable polar pickup patterns: omnidirectional, cardioid, or figure-of-eight. The mic’s transformer-coupled output and specially-tuned element provide sonic characteristics that harken back to early F.E.T. (field-effect transistor) studio microphone designs. The wide dynamic range, along with incredibly low self-noise and high sound pressure level (SPL)-handling capability enables this versatile microphone to excel in a variety of audio capture applications.

Applications

Vocals • Strings • Acoustic guitar • Instrument ensembles • Small vocal groups • Voiceovers • Professional recording, broadcast and sound reinforcement

Includes

  • AT4047MP microphone
  • AT8449/SV shock-mount for ⅝"-27 threaded stands
  • Microphone dust cover
  • Protective carrying case

Features

  • Three switchable polar patterns: cardioid, omnidirectional, figure-of-eight
  • Engineered to meet the critical acoustic requirements of professional recording, broadcast and sound reinforcement
  • Transformer-coupled output and specially tuned element provide sonic characteristics reminiscent of early F.E.T. studio microphone designs
  • Exceptionally low self-noise, wide dynamic range and high SPL capability
  • Dual-diaphragm capsule design maintains precise polar pattern definition across the full frequency range of the microphone
  • Precision-machined, nickel-plated brass, acoustic element baffle provides enhanced element stability and optimal sensitivity
  • Vintage silver-matte finish on microphone and shock-mount
  • Open acoustical environment of the symmetrical housing assembly minimizes unwanted internal reflections
  • Custom shock-mount provides superior isolation
  • Integral 80Hz high-pass filter switch and 10dB pad switch

Specifications

  • Element: Externally-polarized (DC bias) condenser
  • Polar Patterns: Cardioid, Omnidirectional, and Figure-of-eight
  • Frequency Response: 20Hz -18kHz
  • Low Frequency Roll-Off: 80Hz, 12dB/octave
  • Open Circuit Sensitivity: -42dB (7.9V) re 1V @ 1Pa
  • Impedance: 100Ω
  • Maximum Input Sound Level:
    • 155dB SPL, 1kHz @ 1% THD
    • 165dB SPL,with 10dB pad (nominal)
  • Noise: 14dB
  • Dynamic Range (typical): 141dB, 1kHz @ Max SPL
  • Phantom Power Requirements: 48VDC, 3.4mA typical
  • Switches: Polar pattern selection, Flat, roll-off, 10dB pad (nominal)
  • Weight: 18.5oz. (524g)
  • Dimensions (L x maximum body diameter): 7.40" x 2.10" (188 x 53.4mm)
  • Output Connector: Integral 3-pin XLR-M
  • Note: further information can be found within the items located under the "Documentation" tab above.
