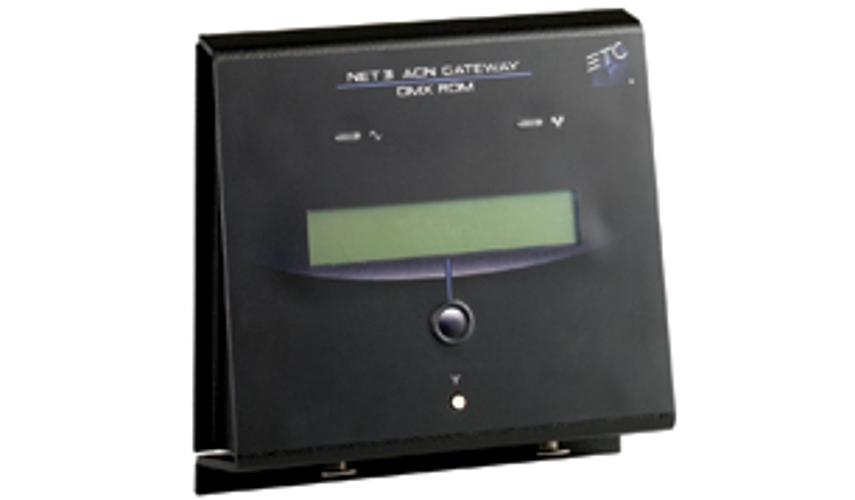

ETC N32G-2F DMX / RDM 2-Port Output Wall Mount Gateway

OUR PART #: N32G-2F MFR #: 4261A1101

Copied to clipboard

ETC's Two-Port Gateway [model N32G-2F] is a DMX and RDM distribution device built on the quality and reliability of ETC's network development. ...Read more

ETC N32G-2F DMX / RDM 2-Port Output Wall Mount Gateway Image 1
ETC N32G-2F DMX / RDM 2-Port Output Wall Mount Gateway
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

ETC's Two-Port Gateway [model N32G-2F] is a DMX and RDM distribution device built on the quality and reliability of ETC's network development. Built for network systems using industry standard streamingACN (sACN), the Two-Port Gateway is compatible with ETC network system products. The DMX Gateway uses bidirectional Ethernet communication with other network devices to send or receive DMX512 data and RDM messages. The N32G-2F Two-Port Gateway supports two DMX output connectors, to transport up to 1024 addresses of DMX over Ethernet.

The Two-Port DMX Gateway is available for use as a wall-mount, or pipe-mount device.

ACN - Architecture for Control Networks is a standard for high-speed bidirectional communication over TCP/IP on Ethernet network infrastructure. ACN is a suite of protocols used between network devices for the purposes of greater and more adaptive control in lighting applications.

Net3 - Net3 is ETC's network protocol that uses industry-defined ACN and steaming ACN protocols. Net3 allows Ethernet devices to seamlessly communicate together across the network.

RDM - Remote Device Management is a protocol enhancement to DMX512 that allows bidirectional communication between a system controller and attached RDM-compliant devices over a standard DMX line. This allows configuration, status monitoring, and management of the connected RDM devices.

Applications:

  • Roadhouses
  • Touring
  • University/professional theaters
  • Convention halls
  • Tech tables
  • Stage manager panels
  • System integration

ETC N32G-2F Net3 Two-Port Gateway Features:

  • Supports Net3 using ACN and streaming ACN protocols
  • Two 5-pin DMX ports of distributed DMX
  • Distributes up to 1024 addresses over Ethernet
  • Supports Remote Device Management (RDM)
  • Supports Power over Ethernet (PoE 802.3af) or external power supply
  • Integrated LCD displays status and configuration information
  • Compact design supports wall-mount or touring configurations
  • Configured using Net3 Concert configuration software
  • ANSI E1.17 ACN protocol compatible

Note:

See Attached for Product Specifications
