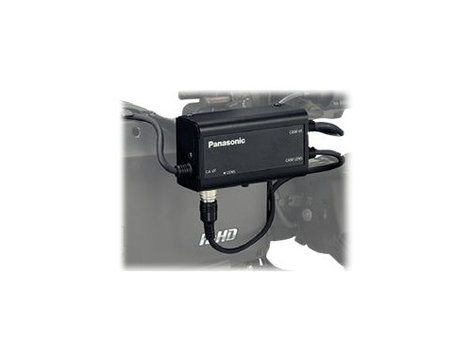

Panasonic AG-YA500GPJ
Viewfinder Adapter

OUR PART #  AGYA500GPJ

Our Price: $1,013.10
List Price: $1,215.00
You save 17%!
Usually ships in 7-14 business days.
Need it sooner? Call us!

The Panasonic AG-YA500GPJ allows the standard ENG viewfinder to display the return video and the Tally signals. Those signals will be in the same format as the standard Viewfinder. Compatible with the AG-HPX500, AJ-HPX2000, 2700, 3000, 3700, HDX900, and the AJ-HDX400.

Panasonic AG-YA500GPJ Specifications:

General

  • Input*
    • DC + 5.6 V, 0.06 A
    • DC - 5.6 V, 0.06 A
  • Dimensions (WxHxD): 4.4 in. x 2.4 in. x 1.6 in. (113 mm x 60 mm x 41 mm)(excluding protruding parts)
  • Weight: approx. 0.9 lbs. (410 g)
  • Operating temperature: 0 °C to 40 °C (32 °F to 104 °F)
  • Storage temperature: -20 °C to 60 °C (-4 °F to 140 °F)
  • Operating humidity: 10 % to 85 % (w/o condensation)

*Safety Information.

I/O Section

  • LENS: Round 12 pin
  • CAM LENS: Round 12 pin
  • CAM VF: Round 20 pin
  • VF: Round 20 pin
  • CA VF: D-Sub 15 pin

Accessories

  • Mounting bracket x 1
  • Mounting screws (8 mm) x 4
  • Mounting screws (12 mm) x 2

NOTE: Weight and dimensions when shown are approximate. Specifications are subject to change without notice.



    Panasonic AG-YA500GPJ
    Viewfinder Adapter

    OUR PART #  AGYA500GPJ

    Product Information:

    The Panasonic AG-YA500GPJ allows the standard ENG viewfinder to display the return video and the Tally signals. Those signals will be in the same format as the standard Viewfinder. Compatible with the AG-HPX500, AJ-HPX2000, 2700, 3000, 3700, HDX900, and the AJ-HDX400.

    Panasonic AG-YA500GPJ Specifications:

    General

    • Input*
      • DC + 5.6 V, 0.06 A
      • DC - 5.6 V, 0.06 A
    • Dimensions (WxHxD): 4.4 in. x 2.4 in. x 1.6 in. (113 mm x 60 mm x 41 mm)(excluding protruding parts)
    • Weight: approx. 0.9 lbs. (410 g)
    • Operating temperature: 0 °C to 40 °C (32 °F to 104 °F)
    • Storage temperature: -20 °C to 60 °C (-4 °F to 140 °F)
    • Operating humidity: 10 % to 85 % (w/o condensation)

    *Safety Information.

    I/O Section

    • LENS: Round 12 pin
    • CAM LENS: Round 12 pin
    • CAM VF: Round 20 pin
    • VF: Round 20 pin
    • CA VF: D-Sub 15 pin

    Accessories

    • Mounting bracket x 1
    • Mounting screws (8 mm) x 4
    • Mounting screws (12 mm) x 2

    NOTE: Weight and dimensions when shown are approximate. Specifications are subject to change without notice.
