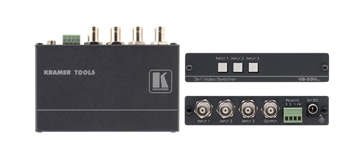

Kramer VS-33VXL
3x1 Video Switcher

OUR PART #:  VS33VXL

The VS-33Vxl is a high-performance switcher for composite video signals. Switching during the vertical interval ensures glitch-free switching with genlocked sources.
Learn More
Our Price: $236.00
List Price: $295.00
You save 20%!
Write the first review.
Kramer VS-33VXL
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The VS-33Vxl is a high-performance switcher for composite video signals. Switching during the vertical interval ensures glitch-free switching with genlocked sources.
  • Bandwidth - 46MHz (-3dB)
  • Vertical interval switching - Genlocks to input 1
  • Contact closure remote switching capability
  • Compact Kramer TOOLS - 3 units can be rack mounted side-by-side in a 1U rack space with the optional RK-3T rack adapter

Specifications:

  • Inputs: 3 composite video, 1Vpp/75? on BNC connectors.
  • Output: 1 composite video, 1Vpp/75? on a BNC connector.
  • Max. Video Output: 1.8Vpp/75?.
  • Video bandwidth (-3dB): 46MHz
  • Diff. gain: 1.25%
  • Diff. phase: 0.5Deg
  • K-Factor: <0.05%
  • Video S/N ratio: 73dB
  • Switching: Vertical interval
  • Crosstalk: -44dB @ 5MHz
  • Dimensions: 4.72 x 2.74 x 0.96 inches
  • Weight: 0.66lbs
