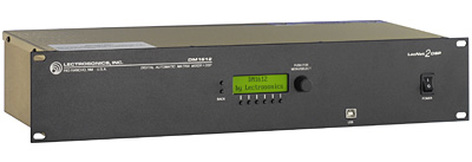

Lectrosonics DM1612F 16x12 Digital Automatic Matrix Mixer

OUR PART #: DM1612F MFR #: DM1612F

Copied to clipboard

The DM1612F is a digital audio processing, mixing, and routing system. ...Read more

Lectrosonics DM1612F 16x12 Digital Automatic Matrix Mixer Image 1
Lectrosonics DM1612F 16x12 Digital Automatic Matrix Mixer Image 2
Lectrosonics DM1612F 16x12 Digital Automatic Matrix Mixer Image 3
Lectrosonics DM1612F 16x12 Digital Automatic Matrix Mixer
Our Price: $3,828.25
List Price: $4,993.00
You save 23%!

SPECIAL FINANCING AVAILABLE

Synchrony Music & Sound Card
$107/mo* with 36 month financing. ‡
Limited Time. Learn How
Item has an extended delivery time. Please call our Sales Pros for up-to-date information on product availability or alternatives.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

The DM1612F is a digital audio processing, mixing, and routing system. The primary applications are sounds reinforcement and conferencing in boardrooms, courtrooms, houses of worship, hotel, and other applications with multiple microphones and loudspeakers.

Lectrosonics DM1612F Features:

  • 16 mic/line inputs, 12 line outputs (4 outputs are mic/line switchable)
  • 16 x 12 digital matrix mixing; gain is adjustable from -69 to +20 dB
  • Proportional gain auto mixing algorithm with AutoSkew
  • Auto mixing operates at the output of the matrix -each input channel can participate differently in each output mix
  • Each output has its own NOM mixing bus
  • 6 filter stages plus compressor, ADFE and deplay on each input
  • 9 filter stages plus compressor, limiter and delay on each output
  • 128 macros available for storing up to 64 commands per macro
  • USB and RS-232 interfaces for setup and control
  • Digital I/O ports for "daisy chaining" and to connect other LecNet 2 devices
  • AMX and CRESTRON compatible
  • Simultaneous LecNet2 and Third-Party control
  • Continuous fan cooling
  • Easily configurable using a computer system with Windows 2000, XP, or Vista operating systems
