Chief Manufacturing SL151
Smart Lift, Travel

OUR PART #:  SL151

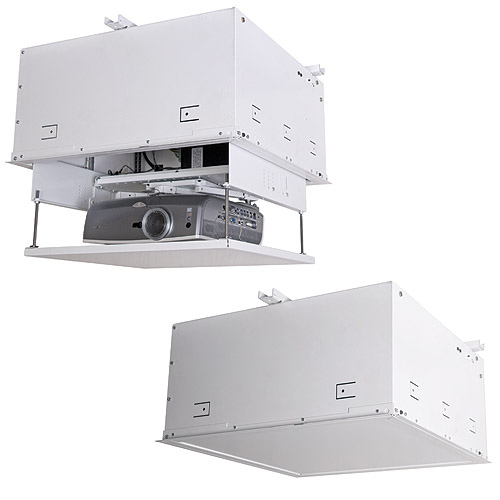

The SL151 provides exceptionally smooth and quiet movement and is a great option for suspended and finished ceilings in homes and corporate offices.
Learn More

Add to Cart to See Price

Chief Manufacturing SL151
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The SL151 provides exceptionally smooth and quiet movement and is a great option for suspended and finished ceilings in homes and corporate offices.

Features:

  • Precise positioning including vertical projector cradle adjustment and fore/aft projector positioning
  • Quick connect/disconnect for convenient lamp and filter access on most projectors
  • Maintains registration even when disconnected
  • Independent roll, pitch and yaw
  • Low profile, requires minimal clearance above the ceiling
  • Easy installation, the drop-in design fits into a 2' x 2' suspended ceiling
  • Multiple installation options: three 0.38" (10 mm) threaded rods, 1.5" NPT threaded extension column with SMA602 accessory, or side mount with built-in joist tabs
  • UL Listed

Specifications:

  • Adjustments:
      -  Roll: 2°
      -  Pitch: 20°
      -  Yaw: 5°
  • Ceiling Closure:  20.2" x 20.3" ( 514 x 515 mm)
  • Ceiling Opening:  23.5" x 23.5" x 11.2" (597 x 597 x 284 mm)
  • Certifications:  CE Approved, FCC Approved, TUV Approved, UL Listed, WEEE Approved
  • Color:  White
  • Extension:  8.3"
  • Max Equip Size (H X W X D):  8.4" x 18.3" x 18.3" (213 x 464 x 464 mm)
  • Overall Dimensions (H x W x D):  23.5" x 23.5" x 11.2" (597 x 597 x 284 mm)
  • Power Requirements:
      -  120 V, 60 HZ, 12 A
      -  230 VAC, 50 HZ, 2 A
  • Weight Capacity:  35 lbs (15.9 kg)
