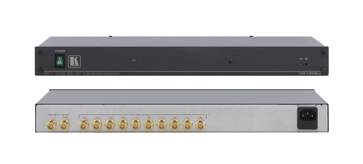

Kramer VM-10HDXL
1:10 3G HD-SDI Distribution Amplifier


The VM-10HDxl is a high-performance distribution amplifier for 3G HD-SDI signals.
Learn More
Our Price: $1,368.00
List Price: $1,710.00
You save 20%!
Write the first review.
Kramer VM-10HDXL
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The VM-10HDxl is a high-performance distribution amplifier for 3G HD-SDI signals. The unit takes one input, provides reclocking and equalization and distributes the signal to ten identical outputs.


  • Max. Data Rate - 3Gbps.
  • HDTV Compatible.
  • Multi-Standard Operation - SDI (SMPTE 259M/344M), HD-SDI (SMPTE 292M) & 3G HD-SDI (SMPTE 424M).
  • Kramer Equalization & re-Klocking™ Technology - Rebuilds the digital signal to travel longer distances.
  • HD-SDI & SDI Input Indication LEDs.
  • Looping Input.
  • Standard 19” Rack Mount Size - 1U. Rack "ears" included.


  • Inputs: 1 SMPTE-259M/292M/424M serial video, 75? on a BNC connector.
  • Outputs: 10 equalized and reclocked SMPTE-259M/292M/424M outputs, 75? on BNC connectors;1 looped GENLOCK 75Ohm/Hi-Z on a BNC connector.
  • Maximum Output Level: 800mVpp/75?.
  • Maximum Data Rate: Up to 2.97Gbps.
  • Coupling: AC.
  • Power Source: 100/240V AC, 50/60Hz, 5VA.
  • Dimensions: 19" x 7" x 1U W, D, H, rack mountable.
  • Weight: 3.3 lbs (1.5 kg) approx.
  • Accessories: Power cord, rack "ears".
