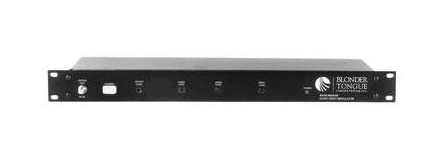

Blonder-Tongue BAVM-860SAW-95-99
54-300MHz Saw-Filtered Channelized A/V Modulator

OUR PART #:  BAVM-860SAW-95-99

The Blonder Tongue BAVM-860SAW is an economical commercial quality TV modulator. It provides a +55 dBmV RF output on any specified CATV channel from 2 to 135 (54 to 860 MHz).
Learn More
Selected Model Price: $123.99
List Price: $124.99
Write the first review.
Blonder-Tongue BAVM-860SAW-95-99
Select a Model: (shipping times are approximate)
Qty:

Similar Products

The Blonder Tongue BAVM-860SAW is an economical commercial quality TV modulator. It provides a +55 dBmV RF output on any specified CATV channel from 2 to 135 (54 to 860 MHz). HRC and IRC frequency plans are also available. The BAVM-860SAW is ideal for placing A/V program sources such as satellite receivers, VCR’s, DVD’s, cameras or TV demodulators onto standard 6 MHz NTSC TV channels for broadband distribution. The BAVM-860SAW features IF SAW filtering with built-in FCC group delay pre-distortion assuring excellent adjacent channel performance and color operation. The modulator complies with FCC 21006 with +/- 5 KHz visual carrier stability and required frequency offsets on all aeronautical channels. For BTSC stereo applications, a field-defeatable audio preemphasis network is provided making the BAVM-860SAW compatible with any outboard stereo generator that provides a composite baseband output. A -30 dB output test point and all user controls are provided on the front panel.

Features:

  • Meets FCC Docket 21006 Aeronautical Frequency Offset Requirements
  • Fully Compatible With BTSC Encoded Stereo Audio
  • Front Panel Accessible Level Controls for Easy Set-Upand Adjustments
  • Low Cost High Performance ChannelizedAudio/Video Modulator
  • AC Convenience Outlet

Specifications:

RF

  • Frequency Range: CATV Channels 2 to 135
  • Output Level: 55 dBmV, Min
  • Output Level Range: 15 dB, Continuously Adjustable by Front Panel Output Level Control
  • Audio/Video Carrier Ratio Control: -7 dB to -20 dB
  • Frequency Tolerance: ±10 kHz - Standard Channels, ±5 kHz FCC 21006 Offsets
  • Audio Carrier Frequency Setting: ±1 kHz, Max, 4.5 MHz Above Video Carrier
  • RF to Video Response from Fv -0.5 MHz to Fv +4.2 MHz: 1 dB P/V
  • Broadband Noise: -90 dBC
  • Spurious Output in 50 – 860 MHz Range @ +55 dBmV Output: -60 dBc
  • Output Match (Return Loss): 12 dBc
  • Vestigial Sideband Response:
      -  @Channel Edge -20 dB
      -  @Adjacent Channel -40 dB

Video

  • Input for 87.5% Modulation: 0.7V to 2.5 V P-P
  • Video Input Return Loss: 18 dB
  • Video Carrier-To-Noise Ratio in 4 MHz Bandwidth: 62 dB
  • P-P Video to 60 Hz RMS Hum Ratio: 60 dB
  • Differential Gain at 87.5% Modulation: 5%
  • Differential Phase at 87.5% Modulation: 5°
  • Group Delay: 170 ± 50 nS

Audio

  • Input Impedance: 10K O, Unbalanced
  • Input for 25 KHz Peak Deviation: 140 mV RMS
  • Audio Frequency Response: ±1.0 dB (50 Hz to 15 KHz ref to std 75 msec Pre-emphasis)
  • 4.5 MHz Intercarrier Stability: ±5.0 kHz

General

  • Power Requirements: 105-130 VAC, 60 Hz, 10.5 W
  • Temperature Range: 0 to +50 °C

Mechanical

  • Dimensions (W x H x D):
      -  19 x 1.75 x 3 in.
      -  482.6 x 44.45 x 76.2 mm
  • Line Cord:
      -  3 Wire Grounded
      -  3 Wire Convenience Outlet
  • Weight:
      -  4 lbs.
      -  1.81 kg

Connectors

  • Audio In: “F” Female
  • Video In: “F” Female
  • RF Out: “F” Female
  • RF Output Test - 30 dB
      -  “F” Female
