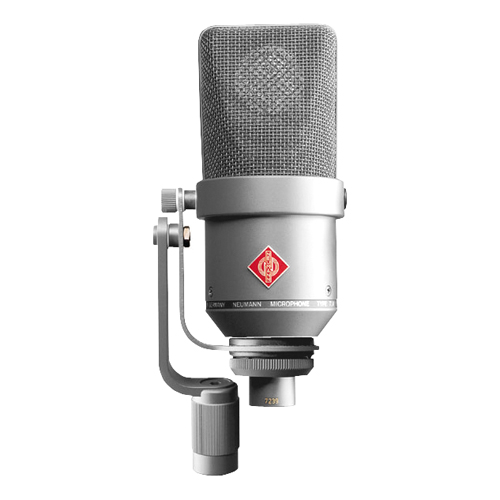

Neumann TLM 170 R Stereo
Stereo Matched Pair of Multi-Pattern Microphones with K89 Capsules, Elastic Suspensions, Tilting Side Brackets, & Case in Satin Nickel Finish

OUR PART #:  TLM170R-STEREO-NI

This is a stereo set of TLM 170 R multipattern condenser microphones in satin nickel finish.
Learn More

Call for price! Not available online.
List Price: $6,999.95

Similar Products

This is a stereo set of TLM 170 R multipattern condenser microphones in satin nickel finish.

Includes:

  • 2x TLM 170 R microphones
  • 2x EA 170 elastic suspensions
  • 2x tilting side brackets
  • 2x dust covers
  • Aluminium case

TLM 170 R Microphone

The TLM 170 R is the first Neumann microphone with transformerless technology, featuring 5 directional characteristics, selectable at the mic or remotely, in addition to pre-attenuation and low-cut filter switches.  The excellent sound pressure handling capability makes this mic ideal for recording wind instruments, for example.

The TLM 170 R was the first microphone to use the successful fet 100 technology.  Along with a balanced, transformerless output stage it features extremely low self-noise and an impressive dynamic range.

Five directional characteristics are selectable by means of a rotary switch.  In the sixth position, marked "R", the directional patterns can be controlled remotely with the N 248 power supply.  There is no special cable necessary for this purpose.

The microphone has at its rear a 10 dB attenuation switch for extremely high sound pressure levels, and a high-pass filter to suppress structure-borne noise.

Applications

The TLM 170 R condenser microphone is a large diaphragm microphone with multiple polar patterns.  Its sound has a very transparent characteristic, in contrast to some of our other microphones that have a distinct personality.

Therefore, this microphone is used for many diverse applications in professional recording studios, in broadcasting, film and television, and for semiprofessional productions.  The polar patterns can be selected either at the microphone itself, or controlled remotely through the special N 248 power supply.

Acoustic Features

The microphone is addressed from the front, marked with the Neumann logo.  The large diaphragm capsule inside the headgrille has a very smooth frequency response for all polar patterns over a wide acceptance angle.  The curves are flat and parallel to the 0° frequency curve up to 10 kHz within an angle of ± 100°.

As a result the TLM 170 R has a very even diffuse-field response for all polar patterns.  This is important in a reverberant environment, as more reflections arrive at the microphone from different directions.  The acoustic information is not affected in its tonal quality when recorded by the microphone.  This characteristic is achieved without resorting to corrective resonance effects.

Therefore, the microphone maintains an excellent impulse response reproducing all transient phenomena of music and speech without any coloration. The capsule is elastically mounted to avoid any structure borne noise that could interfere with its operation.

Polar Patterns

In addition to the usual directional polar patterns: omnidirectional, cardioid, and figure-8, we have added a hypercardioid and wide-angle cardioid characteristic.  When compared to the standard cardioid pattern, the hypercardioid characteristic suppresses sound from the side more efficiently.  The wide-angle polar pattern is especially useful to record large sound sources.

Remote Control

The N 248 controls the polar pattern remotely by varying the phantom voltage.  The range is ± 3 V of the nominal 48 V value.  (According to DIN standard a range of ± 4 V is permissible.)

The rotary switch on the microphone must be in the position R (= remote control). In this switch position the TLM 170 R microphone analyses the absolute value of the phantom power and selects the corresponding polar pattern.  A standard 3-pin microphone cable is used, similar to the microphone's conventional operation.  Cable lengths may be up to 300 m (1000 feet).

Electrical Features

The letters TLM stand for "transformerless microphone".  With TLM technology the usual output transformer is replaced by an electronic circuit.  As with traditional transformers, it ensures good common mode rejection, and prevents RF interference, that may influence the balanced audio signal.

Use on Tripods

The TLM 170 R is provided with a tilting side bracket to attach the microphone to booms or stands.  The bracket is equipped with rubber elements that effectively protect the microphone from mechanical shock.  If necessary, it can be mounted on the other side of the microphone as well.

When using the IC 4 cable (for example to suspend the microphone from the ceiling with the MNV 87 auditorium hanger), the bracket and its holder need to be removed.  The microphone can then be connected to the swivel mount connector of the cable.

Filter and Attenuation

The TLM 170 R microphone has a 10 dB attenuation switch to prevent the input of the following unit from being overloaded.  A second switch at the rear allows to attenuate the frequency response below 100 Hz to suppress undesired structure borne noise.

Operational Safety

All exposed surfaces of the capsule, including the diaphragms, are at ground potential. This technology makes them highly immune to electrical and atmospheric interference and contamination through dust particles.

Features:

  • Local and remote controlled large diaphragm microphone
  • Pressure-gradient transducer with double membrane capsule
  • Five directional characteristics: omni, wide angle cardioid, cardioid, hypercardioid, figure-8
  • Patented circuitry for remote and local switching of directional characteristics
  • Switchable low frequency roll-off and 10 dB preattenuation
  • Tiltable, elastically suspended bracket mount

Specifications:

  • Acoustical operating principle: Pressure gradient transducer
  • Directional pattern: Omnidirectional, wide angle cardioid, cardioid, hypercardioid, figure-8
  • Frequency range: 20 Hz ... 20 kHz
  • Sensitivity at 1 kHz into 1 kohm: 8 mV/Pa
  • Rated impedance: 50 ohms
  • Rated load impedance: 1 kohms
  • Equivalent noise level, CCIR*: 26 dB
  • Equivalent noise level, A-weighted*: 14 dB-A
  • Signal-to-noise ratio, CCIR* (rel. 94 dB SPL): 68 dB
  • Signal-to-noise ratio, A-weighted* (rel. 94 dB SPL): 80 dB
    *According to IEC 60268-1; CCIR-weighting acccording to CCIR 468-3, quasi peak; A-weighting according to IEC 61672-1, RMS
  • Maximum SPL for THD 0.5%**: 144 dB
  • Maximum SPL for THD 0.5% with preattenuation**: 154 dB
    **Measured as equivalent el. input signal
  • Maximum output voltage: 10 dBu
  • Dynamic range of the microphone amplifier (A-weighted): 130 dB
  • Supply voltage (P48, IEC 61938): 48 V ± 4 V
  • Current consumption (P48, IEC 61938): 3 mA
  • Matching connector: 3-pin XLR-F
  • Weight: 625 g
  • Diameter: 60 mm
  • Length: 152 mm
