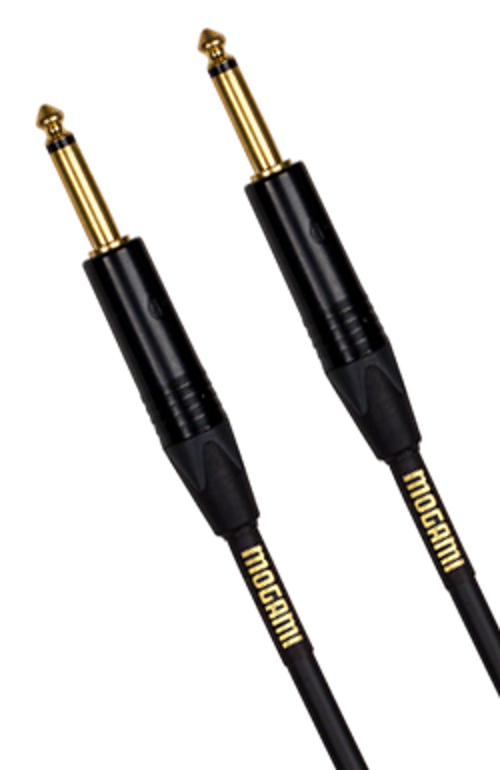

3 ft. TS-TS Instrument Patch Cable


The Mogami GOLD-INSTRUMENT-03 instrument cable must be designed to prevent noise distruption...
Learn More
Our Price: $39.95
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping


We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price


Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Mogami GOLD-INSTRUMENT-03 instrument cable must be designed to prevent noise distruption, so a conductive PVC layer is placed under the shield conductor to drain away this voltage.

Mogami GOLD-INSTRUMENT-03 Features:

  • OFC (oxygen-free copper) core for the highest level of transparency
  • Carbon impregnated PVC eliminates handling noise
  • Ultra High Density spiral shield
  • Conductive polymer sub-shield

Mogami GOLD-INSTRUMENT-03 Specifications:

  • Part No.: W2524
  • Conductor:
    • Details: 50/0.12A
    • Size(mm²): 0.565mm² (#20AWG)
  • Insulation:
    • Ov. Dia.(mm): 2.7Ø (0.106")
    • Material: PE
    • Color: Clear
  • Sub-Shield:
    • Ov. Dia.(mm): 3.3Ø (0.130")
    • Material: Conductive PVC (Carbon PVC)
    • Color: Black
  • Main-Shield: Approx. 55/0.18A
  • Jacket:
    • Ov. Dia.(mm): 6.0Ø (0.236")
    • Material: PVC
    • Color: Black
  • Roll Sizes: 100m (328Ft) / 200m (656Ft)
  • Weight per 100m (328Ft) roll: 5.1Kg
  • DC Resistance at 20°C:
    • Inner Conductor: 0.033O/m(0.010O/Ft)
    • Shield Conductor: 0.014O/m(0.0043O/Ft)
  • Capacitance at 1kHz, 20°C: 130pF/m (39.7pF/Ft)
  • Inductance: 0.2µH/m (0.061µH/Ft)
  • Electrostatic Noize: 0.15mV Max.
  • Electromagnetic Noise At 10kHz: 0.07mV Max.
  • Microphonics: 0.3mV Max
  • Voltage Breakdown: Must withstand at DC 500V/15sec.
  • Insulation Resistance: 100000 MO × m Min. at DC 500V , 20°C
  • Flex Life: 15,000 cyles
  • Tensile Strength (26°C, 65%RH): 578 N
  • Emigration: Non-emigrant to ABS resin
  • Applicable Temperature: -20°C? +60°C(-4°F +140°F)
