Whirlwind CSR40PRP 32x8 Parallel Rack Panel Splitter

Whirlwind's Concert Series mic splitting systems include the most requested options for splitter boxes and panels for concert audio. The CSR40PRP is a parallel rack panel splitter that features 32 WC3F Female XLR Microphone inputs alongside 8 WC3M Male XLR returns.

Cables and fanouts to connect the system may be selected from Whirlwind's Multiline Cable Assemblies and FM Series fanouts.

Features

• Housed in EIA 19" rack panel with back box enclosure
• Microphone inputs are wired directly to one multipin (Main Out) and paralleled
• Replaceable pin MASS
• Each microphone input has a ground-lift switch on the Split Out, and return lines are hardwired to both multipins.

Specifications

• Height: 8RU
• Connectors
  • 32 WC3F Female XLR Microphone Inputs
  • 8 WC3M Male XLR Returns
• Parallel Split

Note:

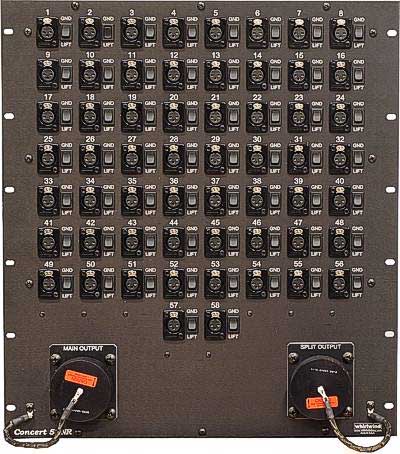

* Picture is for illustrative purposes only.
