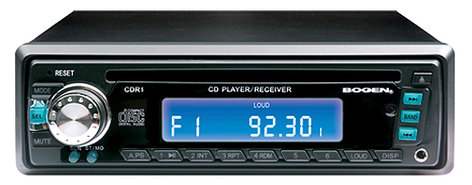

Bogen Communications CDR1
Single Disk CD Player/Tuner

OUR PART #:  CDR1-BOGEN

The Bogen CDR1 CD Player and AM/FM Receiver provides a reliable and economic background music source for a sound system.
Learn More
Our Price: $303.47
List Price: $325.77
You save 7%!
Write the first review.
Bogen Communications CDR1
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

The Bogen CDR1 CD Player and AM/FM Receiver provides a reliable and economic background music source for a sound system. The CDR1 is a compact, integrated unit that allows users to store up to 30 radio presets (18 FM and 12 AM stations) and to play CD, CD-R, or CD-RW discs, as well as MP3 files. The CDR1 is an excellent choice for both small and large background music systems. It can stand alone on a shelf or mount easily in a standard equipment rack (2 rack spaces high, with optional rack kit).

Bogen Communications CDR1 Features:

  • CD, CD-R, and CD-RW compatibility (including MP3 files)
  • Browse, Repeat, Random Play, and Pause functions
  • 30 Station presets: 5 Selectable bands (3 FM and 2 AM) can be programmed with 6 stations each
  • Manual Tuner, Auto Seek, and Preset Scan functions
  • Adjustable Loudness Contour
  • AUX Input via front panel 1/8" stereo jack
  • Pluggable screw terminal inputs for AM/FM antennas and speaker outputs
  • 75-ohm FM F-type coax antenna input
  • 1-watt, 8-ohm right/left outputs
  • Separate 50-ohm right/left outputs
  • 50-ohm mono-summed output
  • Standard 19-inch rack mounting (2 rack spaces) with RK78 rack mounting kit, sold separately
  • 12-hour time display
  • LCD Display shows time, CD track information, or radio frequency
  • Adjustable bass and treble
  • EQ Presets: Classical, rock, pop, and flat

Bogen Communications CDR1 Specifications:

  • FM Tuner:
      -  Frequency Range: 87.5 MHz – 108 MHz
     -  Sensitivity: 3 µV
      -  Antenna: 75-ohm F-type coax;300-ohm Dipole type
  • AM Tuner:
      -  Frequency Range: 530 kHz – 1710 kHz
     -  Sensitivity: 100 µV
      -  Antenna: Loop-type
  • Audio Section:
      -  Frequency Response: 20 Hz – 20 kHz (<5 dB)
      -  Speaker Output: 1W Minimum @ 8 ohms(Right/Left)
      -  Line Output: 50 ohms(Right/Left/Mono)
      -  Operating Voltage: 12V DC / 3A (via desktop-style power supply)
      -  Disc Type: CD, CD-R, CD-RW(including MP3 files)
      -  Rack Mounting Kit: RK78 (sold separately)
  • Dimensions: 7-1/4" W × 2-1/8" H × 9-1/4" D
  • Product Weight: 4 lb.
