Speco Technologies CVC675
Color In-Wall Camera

OUR PART #  CVC675

Our Price: $375.00
Usually ships in 7-14 business days.
Need it sooner? Call us!

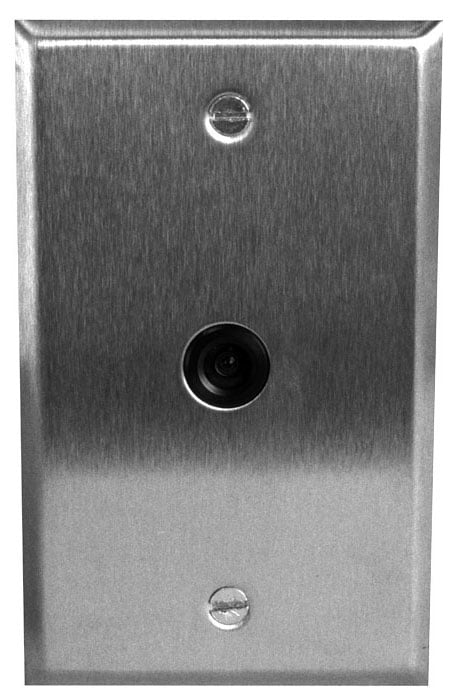

The CVC675 in-wall 1/3" color CCD camera can fit into a single gang electrical box (included). It has a brushed stainless steel face plate. It features a 1.0 lux with 350 line resolution. It has a fixed 3.6mm lens. It uses an RCA female, BNC adapter for video output. A 12V DC power supply and plastic gem box are also included. A B/W version of this camera can be found under model number CVC-75.

Specifications:

  • Dimensions: 2.75"L x 2.75"W x 4.25"H
  • Electronic Shutter: Built In
  • Housing: Stainless steel
  • Humidity: Within 90% RH
  • Image Device: 1/3 inch color CCD image sensor
  • Interlace: PLL 2:1
  • Lens Options: 2.9, 6, 8, 12, 16mm
  • Lens/Angle of View: 3.6mm, Hor. 72º, Vert. 53º
  • Minimum Illumination: 1.0 lux - F:1.6
  • Operating Temperature: 14ºF - 122ºF
  • Outputs/Connection: Video - RCA, Power - DC jack
  • Power Consumption: 210 mA
  • Power Requirements: 12V DC regulated power supply (PSW-5)-included UL and CSA listed
  • Resolution: 350 lines
  • Scanning Frequency: Hor. 15.75 KHz Vert. 60 Hz
  • Scanning System: 512 (H) x 492 (V) picture elements NTSC Color 525 TV lines 60 fields/sec
  • Shutter Control: Auto 1/60-1/50,000 sec.
  • Synchronizing System: Internal
  • Video Output Level: 1.0 Vp-p.75 ohm composite, RCA connector
  • Video S/N Ratio: Greater than 50 dB
  • Weight: .5 lbs.



Click to download

Speco Technologies CVC675
Color In-Wall Camera

OUR PART #  CVC675

Product Information:

The CVC675 in-wall 1/3" color CCD camera can fit into a single gang electrical box (included). It has a brushed stainless steel face plate. It features a 1.0 lux with 350 line resolution. It has a fixed 3.6mm lens. It uses an RCA female, BNC adapter for video output. A 12V DC power supply and plastic gem box are also included. A B/W version of this camera can be found under model number CVC-75.

Specifications:

  • Dimensions: 2.75"L x 2.75"W x 4.25"H
  • Electronic Shutter: Built In
  • Housing: Stainless steel
  • Humidity: Within 90% RH
  • Image Device: 1/3 inch color CCD image sensor
  • Interlace: PLL 2:1
  • Lens Options: 2.9, 6, 8, 12, 16mm
  • Lens/Angle of View: 3.6mm, Hor. 72º, Vert. 53º
  • Minimum Illumination: 1.0 lux - F:1.6
  • Operating Temperature: 14ºF - 122ºF
  • Outputs/Connection: Video - RCA, Power - DC jack
  • Power Consumption: 210 mA
  • Power Requirements: 12V DC regulated power supply (PSW-5)-included UL and CSA listed
  • Resolution: 350 lines
  • Scanning Frequency: Hor. 15.75 KHz Vert. 60 Hz
  • Scanning System: 512 (H) x 492 (V) picture elements NTSC Color 525 TV lines 60 fields/sec
  • Shutter Control: Auto 1/60-1/50,000 sec.
  • Synchronizing System: Internal
  • Video Output Level: 1.0 Vp-p.75 ohm composite, RCA connector
  • Video S/N Ratio: Greater than 50 dB
  • Weight: .5 lbs.



Click to download
