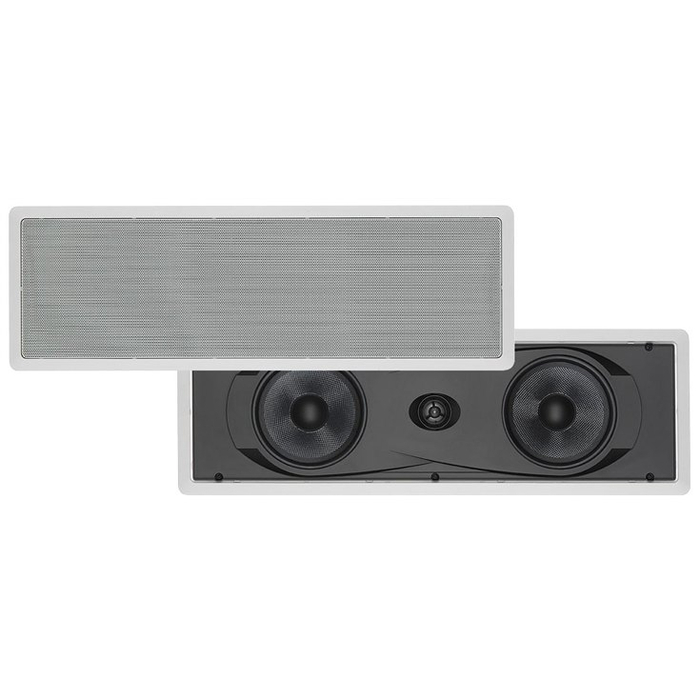

Yamaha NS-IW960
6.5" In-Wall Speaker For Custom Installations


Our Price: $149.95
List Price: $179.95
You save 17%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

Save space in your listening room with the Yamaha NS-IW960 speaker. The easy-to-install unit mounts conveniently in the wall, where its narrow footprint doesn't keep it from delivering powerful, high-performance sound for both movies and music. The speaker is particularly suited to front or center channel applications in a surround sound system thanks to its versatile three-driver design, which ensures that the lows, mids, and highs all receive ample attention.

The NS-IW960's dual 6.5-inch Kevlar cone woofers, for instance, reproduce frequencies as low as 50 Hz--a solid number for an in-wall speaker. The 1-inch titanium dome tweeter, meanwhile, ranges as high as 28 kHz. The end result is warm, rich sound that transitions smoothly and seamlessly from bass-heavy passages to soaring vocal highs.

Yamaha uses only high-quality materials when building the drivers to ensure superb sound quality from any source. And should you need to re-orient your listening area for any reason, the NS-IW960 stands ready to accommodate your new setup. The speaker's tweeter is built on an adjustable swivel, so you can "aim" the high-frequency sounds toward the new listening position. To do so, simply press on the edge of the tweeter until it reaches the correct angle.

Finally, the speaker includes a high-capacity, customized crossover network at 6.5 kHz that helps minimize distortion and prevent the deterioration of transients as they pass through the network. And installation is straightforward thanks to the included cutout template, the paintable grille and frame, and the gold-plated push-type speaker terminals. Note that proper installation requires such tools as a power drill, a drywall saw, wire strippers, a level, a Philips screwdriver, and a sturdy wire such as a coat hanger.

The speaker, which boasts a power rating of 50 watts nominal and 150 watts maximum, measures 7.69 by 23.44 by 3.75 inches (W x H x D) and requires a mounting depth of 3.16 inches. The speaker is also backed by a two-year warranty on parts and labor.


  • Dual 6.5" Kevlar cone woofers
  • 1" titanium swivel dome tweeter
  • 150-Watt maximum input capability
  • High-capacity, high-quality customized crossovernetwork
  • Gold-plated push-type speaker terminals


  • Single NS-IW960 in-wall speaker
  • speaker grille
  • cutout template
  • paint protective cover
  • glue strip
  • user's manual


  • Color: White
  • Speaker Amplification Type: Passive
  • Speakers Maximum Output Power: 150 Watts
  • Speakers Response Bandwidth: 50 Hz - 28 kHz
  • Speaker Connectivity: Wired
  • Depth: 3.16 inches
  • Height: 7.69 inches
  • Width: 23.41 inches
  • Weight: 6.2 pounds
