Yorkville CU15
Install Speaker, 15" 3-Way, 800 Watts @ 8 Ohms, Black

OUR PART #  CU15

Our Price: $1,199.00
List Price: $1,649.00
You save 27%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

Engineered for the serious pro audio user, the CU15 is among the most advanced, most versatile and efficient high-powered compact PA enclosures available on the market today. The unparalleled clarity and precision of the patented Unity™ Summation Aperture conical horn, when combined with a high-performance15-inch Neodymium woofer, delivers amazing intelligibility and performance unmatched by any competitive loudspeaker in this class.

The compact footprint and relative light weight of the CU15 easily make it a first choice for front-of-house applications also as a drum monitor, side fill, front fill and down fill, or virtually any situation where concert-quality sound reinforcement is required. In addition, sonic clarity and smooth frequency response also make the CU15 a great choice for recorded music playback applications. Even with the most demanding recorded programs, the CU15 has the high fidelity to put it on par with some of the best studio reference monitors. But unlike traditional reference monitors, the CU15 is capable of producing extremely high sound pressure levels from its high-efficiency 800-Watt, 4 ohm format, all with sparkling clarity.

The CU15 comes with an advanced passive crossover for plug-and-play convenience, however it can be easily bi-amplified by way of a switch on the rear jack panel and the optional UP15 Unity™ processor. The U15P is designed specifically to optimize the CU15’s sonic characteristics and to ensure trouble free bi-amp operation, with or without a Unity or élite series subwoofer for extended low frequency support.

The cabinet’s trapezoidal shape was designed with multi-box, tight-packed arraying in mind. Due to the nature of the conical horn, the polar pattern remains quite constant on all axis, making it ideal for use upright or on its’ side, with no need to rotate the horn.

The Unity CU15 enclosure is entirely constructed of solid 15mm 11-ply birch finished in durable white paint, designed to be painted over as you desire. It also features a heavy-gauge perforated metal grille to protect the components. Integrated bar handles and a steel stand-mount adaptor make this an ideal cabinet for fixed or mobile applications and features multiple reinforced flypoints making it extremely easy to install on any angle, hung as a single cabinet or in an array.

Features:

  • Ultra-clear reproduction and extremely high intelligibility.
  • Unique 60º x 60º Unity™ horn assembly.
  • Drivers mounted in a Unity™ horn measure and act like a single pointsource.
  • No self-interference between individual loudspeaker components in a CU15.
  • 15-inch high power Neodymium woofer with three-inch voicecoil.
  • 15mm 11-ply birch cabinet construction.
  • Integrated Flypoints on all corners, plus pullback point, 17 in all.
  • Speakon, binding post and ¼-inch inputs.
  • Optional flying hardware available (CU15FH)
  • White paintable finish
  • Two-year unlimited warranty*

* Warranty valid in Canada and the United States only

Specifications:

  • System Type Three-Way
  • Active or Passive Passive
  • Program Power (Watts) 800 / 200
  • Biampable Yes
  • Nominal Impedance (Ohms) 4
  • Sensitivity (dB @1Watt/1m) 98
  • Max SPL (dB) 127
  • Frequency Response (Hz +/- 3db) 50 - 20k
  • Crossover Frequency (Hz) 300 / 1250
  • Driver Configuration 15 inch / 3x5 inch / 1.75 inch
  • HF Driver(s) 1.75 inch polyester
  • HF Impedance (Ohms) 8
  • HF Horn Conical Unity™ horn (1 inch throat)
  • HF Dispersion (°H x °V) 60 x 60
  • HF Protection PTC™
  • MF Driver(s) 3 x 5 inch ceramic 1 inch voicecoil
  • MF Horn Conical Unity™ horn
  • MF Dispersion (°H x °V) 60 x 60
  • LF Driver(s) 15 inch neodymium / 3 inch voicecoil
  • LF Program Power(Watts) 800
  • LF Impedance(Ohms) 4
  • Inputs - 1/4" Jacks 2
  • Inputs - Speakon 4-pin 2
  • Inputs - Binding Post 1
  • Flying Hardware 3/8inch x 17
  • Enclosure Materials 15mm 11-ply Birch
  • Grille Perforated Metal
  • Covering / Finish White two-part epoxy
  • Processor (optional) UP15
  • Dimensions (DWH xbackW, inches) 16.25 x 19.25 x 34 x 9.5
  • Dimensions (DWH xbackW, cm) 42 x 49 x 87 x 24
  • Weight (lbs/kg) 77.6 / 35.2

* Specifications subject to change without notice

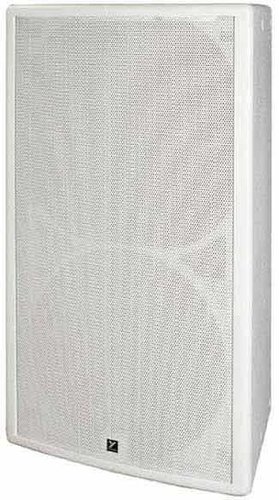

Note: Actual item color is Black and is shown in white.



Click to download

Yorkville CU15
Install Speaker, 15" 3-Way, 800 Watts @ 8 Ohms, Black

OUR PART #  CU15

Product Information:

Engineered for the serious pro audio user, the CU15 is among the most advanced, most versatile and efficient high-powered compact PA enclosures available on the market today. The unparalleled clarity and precision of the patented Unity™ Summation Aperture conical horn, when combined with a high-performance15-inch Neodymium woofer, delivers amazing intelligibility and performance unmatched by any competitive loudspeaker in this class.

The compact footprint and relative light weight of the CU15 easily make it a first choice for front-of-house applications also as a drum monitor, side fill, front fill and down fill, or virtually any situation where concert-quality sound reinforcement is required. In addition, sonic clarity and smooth frequency response also make the CU15 a great choice for recorded music playback applications. Even with the most demanding recorded programs, the CU15 has the high fidelity to put it on par with some of the best studio reference monitors. But unlike traditional reference monitors, the CU15 is capable of producing extremely high sound pressure levels from its high-efficiency 800-Watt, 4 ohm format, all with sparkling clarity.

The CU15 comes with an advanced passive crossover for plug-and-play convenience, however it can be easily bi-amplified by way of a switch on the rear jack panel and the optional UP15 Unity™ processor. The U15P is designed specifically to optimize the CU15’s sonic characteristics and to ensure trouble free bi-amp operation, with or without a Unity or élite series subwoofer for extended low frequency support.

The cabinet’s trapezoidal shape was designed with multi-box, tight-packed arraying in mind. Due to the nature of the conical horn, the polar pattern remains quite constant on all axis, making it ideal for use upright or on its’ side, with no need to rotate the horn.

The Unity CU15 enclosure is entirely constructed of solid 15mm 11-ply birch finished in durable white paint, designed to be painted over as you desire. It also features a heavy-gauge perforated metal grille to protect the components. Integrated bar handles and a steel stand-mount adaptor make this an ideal cabinet for fixed or mobile applications and features multiple reinforced flypoints making it extremely easy to install on any angle, hung as a single cabinet or in an array.

Features:

  • Ultra-clear reproduction and extremely high intelligibility.
  • Unique 60º x 60º Unity™ horn assembly.
  • Drivers mounted in a Unity™ horn measure and act like a single pointsource.
  • No self-interference between individual loudspeaker components in a CU15.
  • 15-inch high power Neodymium woofer with three-inch voicecoil.
  • 15mm 11-ply birch cabinet construction.
  • Integrated Flypoints on all corners, plus pullback point, 17 in all.
  • Speakon, binding post and ¼-inch inputs.
  • Optional flying hardware available (CU15FH)
  • White paintable finish
  • Two-year unlimited warranty*

* Warranty valid in Canada and the United States only

Specifications:

  • System Type Three-Way
  • Active or Passive Passive
  • Program Power (Watts) 800 / 200
  • Biampable Yes
  • Nominal Impedance (Ohms) 4
  • Sensitivity (dB @1Watt/1m) 98
  • Max SPL (dB) 127
  • Frequency Response (Hz +/- 3db) 50 - 20k
  • Crossover Frequency (Hz) 300 / 1250
  • Driver Configuration 15 inch / 3x5 inch / 1.75 inch
  • HF Driver(s) 1.75 inch polyester
  • HF Impedance (Ohms) 8
  • HF Horn Conical Unity™ horn (1 inch throat)
  • HF Dispersion (°H x °V) 60 x 60
  • HF Protection PTC™
  • MF Driver(s) 3 x 5 inch ceramic 1 inch voicecoil
  • MF Horn Conical Unity™ horn
  • MF Dispersion (°H x °V) 60 x 60
  • LF Driver(s) 15 inch neodymium / 3 inch voicecoil
  • LF Program Power(Watts) 800
  • LF Impedance(Ohms) 4
  • Inputs - 1/4" Jacks 2
  • Inputs - Speakon 4-pin 2
  • Inputs - Binding Post 1
  • Flying Hardware 3/8inch x 17
  • Enclosure Materials 15mm 11-ply Birch
  • Grille Perforated Metal
  • Covering / Finish White two-part epoxy
  • Processor (optional) UP15
  • Dimensions (DWH xbackW, inches) 16.25 x 19.25 x 34 x 9.5
  • Dimensions (DWH xbackW, cm) 42 x 49 x 87 x 24
  • Weight (lbs/kg) 77.6 / 35.2

* Specifications subject to change without notice

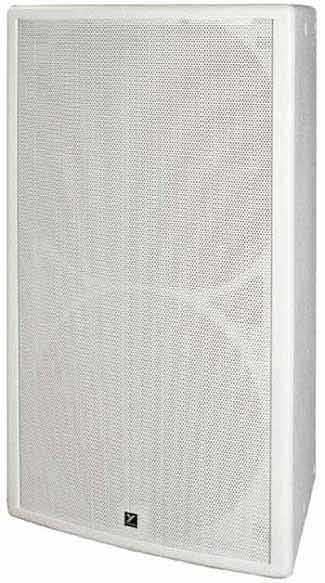

Note: Actual item color is Black and is shown in white.
