Cartoni P900-CARTONI P90 2-Stage Pedestal with Flat Base Adapter

OUR PART #: P900-CARTONI MFR #: P090

Copied to clipboard

The Cartoni P90 Master two-stage pedestal is designed to support camera/lens combinations up to 198 lbs (90 kg) covering the entire range of Studio and OB configurations. ...Read more

Cartoni P900-CARTONI P90 2-Stage Pedestal With Flat Base Adapter Image 1
Cartoni P900-CARTONI P90 2-Stage Pedestal With Flat Base Adapter
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

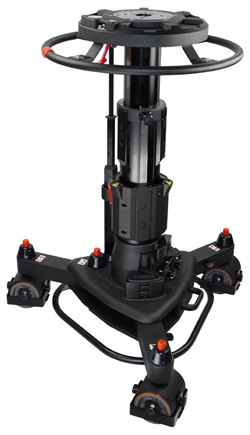

The Cartoni P90 Master two-stage pedestal is designed to support camera/lens combinations up to 198 lbs (90 kg) covering the entire range of Studio and OB configurations.

The system is compact and portable, the 2 stage column performs an on-shot stroke of 74 cm with a smooth and precise movement. The sturdy and yet lightweight dolly is equipped with high precision double wheels interlocked by a special designed chain allowing accurate travelling and steering, even on-shot.

The crab position is also available for narrow door ways. All operating devices and control display are at the cameramen easy access. The pneumatic column works on simple compressed air which can be loaded with a compressor or a simple hand pump. The piston innovative design avoids complicated balance settings.

The system interfaces with all flat base, 4-bore holes heads or any other bowl based head with an adapter.

Cartoni P90 Specifications:

  • Capacity: 198 lbs (90 kg)
  • Maximum pressure: 187 psi (13 atm)
  • Total weght: 132 lbs (60 kg)
  • "On-shot" stroke: 29" (74 cm)
  • Steering wheel diameter: 22.6" (57.5 cm)
  • Min height: 28.9" (72 cm)
  • Max height: 57.5" (146 cm)
  • Wheel diameter: 49.2" (125 mm)
  • Doorway tracking width: 31.4" (80 cm)
  • Dolly leg radius: 18.7" (47.5 cm)
  • Column weight: 66 lbs (30 kg)
  • Dolly weight: 66 lbs (30 kg)
