Coleman Cable 30508-250

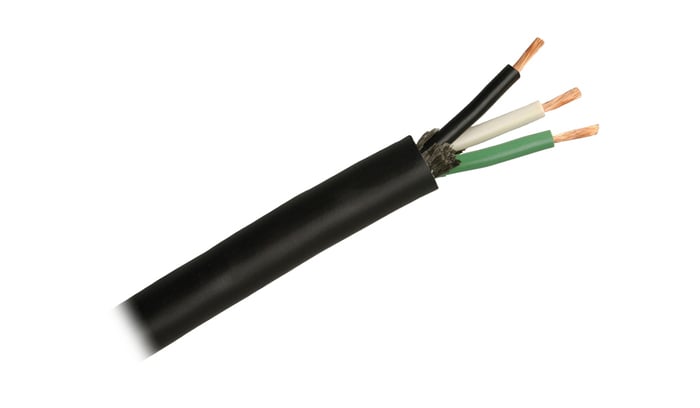

Power Cable, 12 AWG, 5-Conductor, Submersible, Flexible, 250'

OUR PART #:  30508-250

12/5 stranded type SEOOW submersible flexible power cable. This cable consists of three bare copper insulated conductors cables with fillers and an overall jacket.
Learn More
Our Price: $431.20
List Price: $615.98
You save 30%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping


We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price


Coleman Cable 30508-250
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

12/5 stranded type SEOOW submersible flexible power cable. This cable consists of three bare copper insulated conductors cables with fillers and an overall jacket. 600V Portable Oil and Water Resistant Submersible Outdoor Flexible Power Cable.

Flexible and tough jacket. Offers -50 to 105 degrees C temperature extremes. Seoprene offers excellent abrasion, ozone, sunlight, chemical and oil resistance as well as water and mold resistant non-wicking lightweight polypropylene fillers. Water resistant with high dielectric insulation. Lightweight, long lasting, easy to carry and easy to handle. All components are recyclable and non-hazardous for environmental landfill disposal. Color coded conductors for easy indentification.

Special uses requiring flexibility and mechanical toughness, high environmental resistance and flame retardance. Push button remote controls. Motor control, stage equipment and lighting. Industrial control and robotic systems. Outdoor applications. Suitable and approved for submersion in water.

Industry Approvals:
Federal and Military use under Federal Spec. JC-580B. UL Listed SEOOOW 600V and SJEOOW 300V to NEC Article 400, CSA certified STOOW or SJTOOW (TPE) -50 to 105 degrees C. MSHA approval for flame resistance for mining applications.

  • Conductor: 12 AWG Bare Copper
  • Stranding: 65/30
  • Insulation Material: TPE
  • Insulation Thickness: 0.046" Nom.
  • Insulated Conductor Diameter: 0.184" Nom.
  • Number of Conductors: 5
  • Lay Length: 5.00" Nom.
  • Filler Type: Polypropylene
  • Separator/Wrap: Paper Tissue
  • Jacket Material: TPE
  • Jacket Thickness: 0.107" Nom.
  • Overall Cable Diameter: 0.710" Nom.
  • Approximate Cable Weight: 301.9 lbs/1M' Nom.
  • Flame Rating: UL/CSA Horizontal Flame Test
  • Temperature Rating: -50 to 105 degrees C
  • Operating Voltage: 600V RMS Max.
  • DC Resistance per Conductor @ 20 degrees C: 1.62 Ohms/1M' Nom.
  • Max Ampacity per Conductor (Per NEC Table 400-5a): 16 amps/cond (Assume three current carrying conductors)
    (Note: Because of 105C temperature rating, higher current can be used under engineering supervision)
  • Insulation Colors: Black, White, Red, Green, Orange
  • Jacket Color: Black (Other colors available for minimum order)
