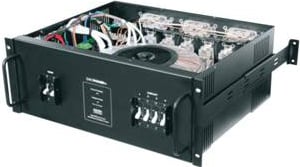

Middle Atlantic Products ISOCTR-5R-240-NS
240V 4RU Isolation Transformer & Power Load Center


Middle Atlantic's IsoCenter system protects connected equipment from voltage spikes and unsafe conditions...
Learn More
Our Price: $3,181.50
List Price: $4,242.00
You save 25%!
Write the first review.
Middle Atlantic Products ISOCTR-5R-240-NS
Usually ships in 7-14 business days.
Need it sooner? Call us!

Middle Atlantic's IsoCenter system protects connected equipment from voltage spikes and unsafe conditions, such as over- and under-voltage or when ground integrity is compromised, by performing an automatic shutdown.  Its low loss and very high efficiency design minimizes magnetic leakage (which enables it to be rackmountable), acoustical noise, and idle power draw.  The advanced toroidal transformer is greater than 98% efficient, and the idle power draw is typically only 9W.  Put this new, innovative AV solution to work for you.


  • Provides effective AV system isolation from electrical noise such as lighting dimmers
  • Very high efficiency toroidal transformer – greater than 98%
  • Saves labor and material cost by using a higher voltage feeder and integrated load center design
  • Four 20A branch circuits
  • Newly derived reference ground helps prevent ground loops and provides lowest possible noise floor
  • True same-phase output circuits – not "split phase"
  • Negligible magnetic leakage – can be installed right in the rack
  • Inaudible acoustical noise
  • Eliminates voltage induction on ground wire feeder
  • 5KVA capacity is sized for typical rack mounted systems
  • Multiple IsoCenters can be used for larger power application requirements


  • Input power plug: NEMA L63OP
  • Output power receptacles: NEMA 5-20R
  • 5KVA isolation transformer with a Faraday shield incorporated to attenuate common-mode noise
  • Optimized for high-frequency differential-mode noise attenuation
  • Inaudible acoustical noise
  • Dimensions: 19.00" W x 7.00" (4RU) H x 14.4" D
  • Rear rack rail mounting range: 17.8" to 24.8"
  • Weight: 105 lbs.
