Leviton N7016-D00
16/32 Channel Memory Console with NSI DMX Installed

OUR PART #:  N7016-D00

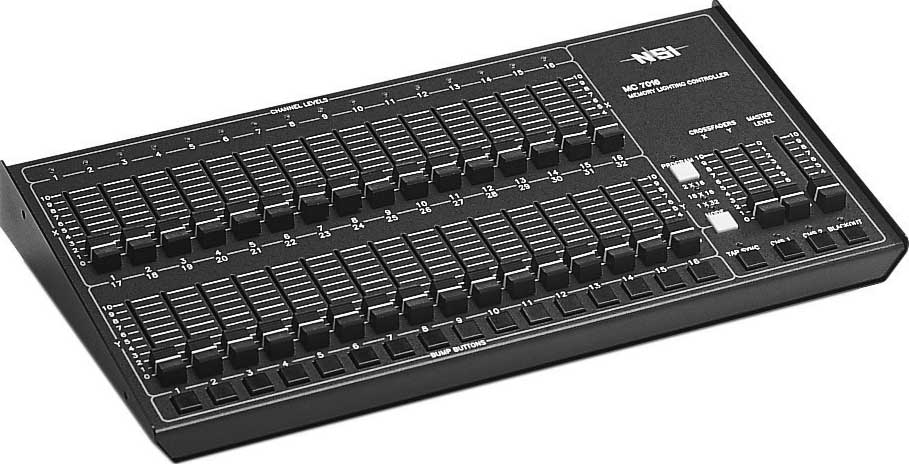

NSI's MC 7000 Series lighting consoles (part #: N7016-D00) are simple and flexible with three operating modes.
Learn More
Our Price: $521.20
List Price: $570.24
You save 9%!
Write the first review.
Leviton N7016-D00
In Stock

Related Products

NSI's MC 7000 Series lighting consoles (part #: N7016-D00) are simple and flexible with three operating modes.  These consoles provide standard 2-scene preset operation, single scene wide mode for double channel capacity and memory scene operation mode.

The MC 7000 Series is particularly well-suited to small theaters and stage performances. These products are so easy to program and operate, the instructions are silk-screened on the back of the units.

Leviton N7016-D00 Memory Console Features:

  • NSI DMX installed
  • 16 x 16 individual control channels in two scene mode
  • 2 manual presets
  • 32 individual control channels and 8 flash memory scenes in wide mode
  • 16 individual control channels and 8 user programmable memory scenes in memory mode
  • Two user-programmable 32-step chase patterns
  • Tap sync button allows chase rate to be adjusted "on the fly"
  • Dual split dipless cross faders allow even fades from scene to scene
  • Channel bump buttons can be used to raise an individual control channel level to full or in wide mode can act as a flash memory scene
  • Master level slider used to proportionally vary the intensity of the console’s current output levels
  • Blackout button
  • DMX512 protocol kit
  • Dimensions (WxDxH): 16.5" x 8.6" x 2.5" (26.7 x 21.8 x 6.4 cm)
  • Shipping Weight: 9 lbs (4.1 kg)


  • NSI 128 channel Micro-Plex (3-pin XLR male and female)
  • DMX512 digital control (5-pin XLR female)
  • Auxiliary power connector +15VDC
