Product Overview

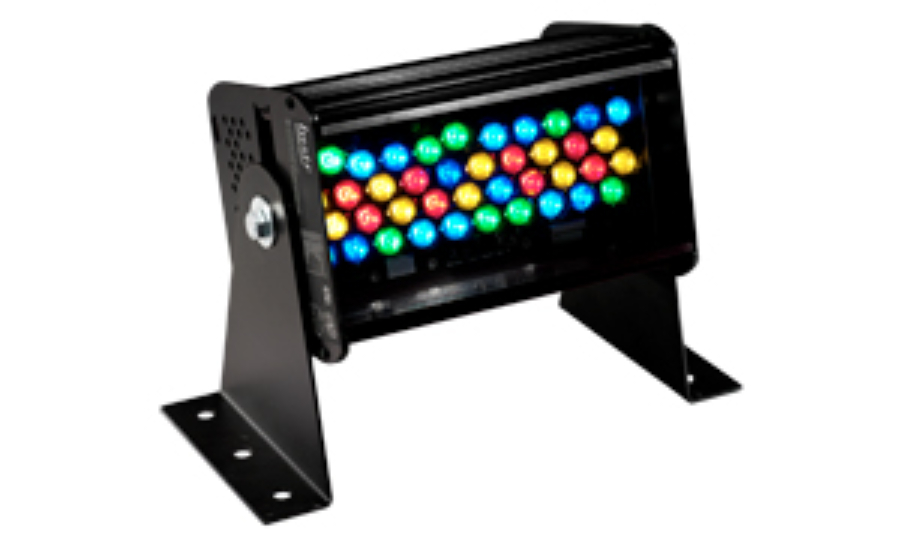

Lustr™ is the white light specialist in the Selador™ Series. For key and fill light applications the Lustr features a yoke for one- and two-cell fixtures as well as frosted optics for a soft beam of light that blends well with existing Source Fours®. The series has a x7 Color Mixing system –seven color LEDs providing the broadest color spectrum in any LED fixture. Incandescent-quality light with low power consumption and the permanence of a 50,000-hour source.
ETC SELLU11 Specifications:
- Lustr 11" (Sellu11)
- 40 LEDs
- Length: 11.0" (280mm)
- Height: 7.1" (180mm)
- Depth: 6.5" (165mm)
- Weight: 11.5lbs. (5.2kgs)
- General
- 2.5W color-mixing LED fixture.
- Rated for indoor dry location use.
- Physical
- All-metal extruded housing.
- Advanced thermal management systems for long LED life.
- Easy-access slots for secondary lenses.
- Yoke (11" and 21" only), trunnion (floor stand), and hanging bracket mounting options.
- Electrical
- 100VAC to 240VAC 50/60 Hz universal power input.
- Neutrik PowerCon input connector.
- 5' power lead (bare-end) supplied.
- Requires power from non-dim source.
- Low-speed, low-noise cooling fan for thermal stability.
- LED
- 50,000 hr. LED life.
- 40 Luxeon Rebel 2.5W LED emitters per cell.
- Color
- x7 Color System, 7-color LED array.
- Lustr - optimized for the best whites and tints.
- Color rendering up to 90 CRI.
- Interacts with conventional sources.
- Natural looking 3200° - or any other Correlated Color Temperatur ewhite light from 800° to 20,000° Kelvin.
- Illuminates skin tones and other objects with a natural appearance.
- Opitical
- Native tight beam spead of approximately 12°.
- Secondary lenses install in fixture front to change distribution of light.
- Use a combination of vertical and horizontal lenses to spread light both directions.
- Control
- DMX512 in and thru via 5-pin XLR connectors.
- 8 channel control (7 color plus intensity).
- Intensity channel minimizes color shift during dimming.
- 15-bit internal control for smooth low-end dimming.
- 21" fixture provides 2 independently controlled cells.
- 42" fixture provides 4 independently controlled cells.
- 63" fixture provides 6 independently controlled cells.
- Thermal
- Ambient operating temperature of 34° to 104° F (1° to 42°C)
