Stewart Audio CVA50-1 50W Mono Amplifier, 70V or 100V

OUR PART #: CVA-50-1

Copied to clipboard

The subcompact CVA-50-1 is built to meet the rigorous demands of high quality commercial, industrial, and pro audio sound installations. ...Read more

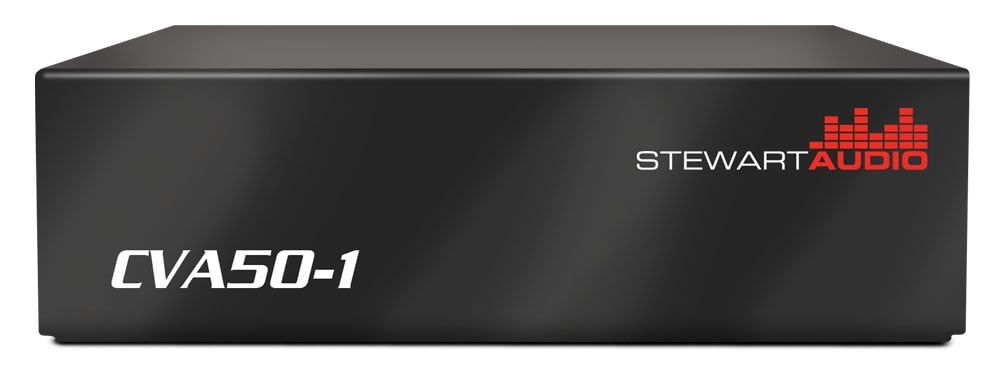

Stewart Audio CVA50-1 50W Mono Amplifier, 70V Or 100V Image 1
Stewart Audio CVA50-1 50W Mono Amplifier, 70V Or 100V Image 2
Stewart Audio CVA50-1 50W Mono Amplifier, 70V Or 100V
Our Price: $319.00
List Price: $375.00
You save 15%!
Synchrony Music & Sound Card
No Interest if paid in full within 6 Months
Learn How

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

The subcompact CVA-50-1 is built to meet the rigorous demands of high quality commercial, industrial, and pro audio sound installations. Low cost, light weight, and convection cooling make this Class D amplifier flexible enough for a broad range of applications requiring quiet amplification. With an extremely compact form factor, the CVA-50-1 allows amplification to be located in places normally off limits to standard amplifiers without compromising sound or power. The Plenum rating (UL 2043) and remote volume control further compliment the recessing options. Stewart Audio’s Signal Sense Power Technology™ (SSPT™) ensures the amplifier is only powered when there is a signal present, saving energy, and extending product life. Like all Stewart products, the CVA's are designed for sonic accuracy, high efficiency, and extended duty cycles.

Applications

  • Boardrooms & classrooms
  • AV projection systems
  • Lecterns and Podiums
  • Plenum applications, UL 2043 rated
  • Pole mounting option
  • Fixed installations with amplifiers located in listening environment
  • Behind flat screen televisions
  • Applications where traditional amplifiers won't fit

Features

  • Mono subcompact amplifier with 50W @ 70V/100V
  • Subcompact, 1/4-rack form factor
  • Plenum-rated for above-ceiling applications
  • Music and fire alarm muting
  • Clean, full-range, dynamic power with signal detect for sleep & wake up

Specifications

  • 50W x 1 @ 70V or 100V
  • Frequency Response (+0, –3 dB, 1W): 100 Hz—20 kHz
  • Power Bandwidth (+3, –3 dB): 80 Hz—30 kHz
  • THD+N:< 0.1%
  • Signal-to-Noise Ratio: >80dB
  • Remote Volume Control: 0-10V DC, 4-Pin Euro Block
  • Input Sensitivity: 0.5V (-6 dBV)
  • Standard Voltage Gain: 151X (43dB) @ 70.7 Volts out
  • Input impedance (Balanced/Unbalanced): 20 kOhms/10 kOhms
  • Sleep, Idle Current Draw, 1/8 power draw: 0.005/0.01/0.15 Amps
  • Class: D
  • Input Connectors: Euro Block 3-Pin
  • Output Connectors: Euro Block 2-Pin
  • Power Supply: External in-line 48VDC (Included), 2-Pin Euro Block
  • Cooling: Convection–Cooling (No Fans)
  • Controls: Level
  • LED Indicators: Power, Signal Present & Clip
  • Construction: Aluminum Chassis & Top Cover
  • Dimensions (HxWxD): 1.25" x 4.35" x 3.2"
  • Weight: 1.2 lbs (0.54 kg)
  • Warranty: 3 years
  • Plenum Rating: UL 2043 Approved
