Radio Design Labs TX-PSD1
Paging Sound Detector

OUR PART #:  TXPSD1

Radio Design Labs' TX-PSD1 is the perfect choice in various applications where switching needs to be controlled from a constant-voltage amplified audio source.
Learn More
Our Price: $94.44
List Price: $126.32
You save 25%!
Write the first review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Radio Design Labs TX-PSD1
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

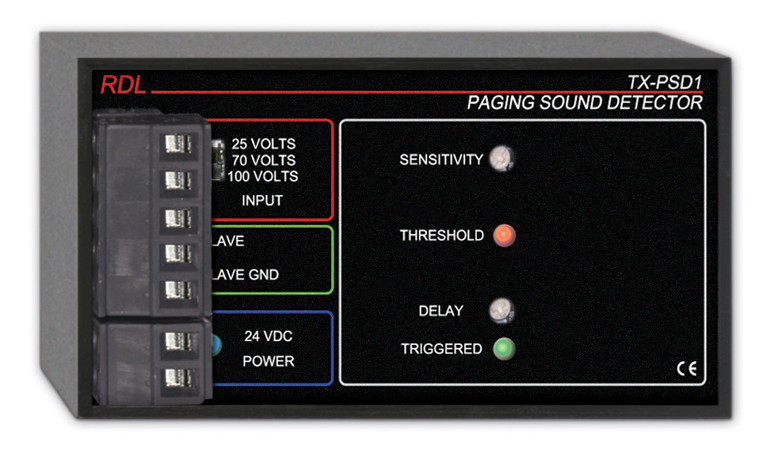

Radio Design Labs' TX-PSD1 is the perfect choice in various applications where switching needs to be controlled from a constant-voltage amplified audio source. The module will trigger on any program material, with paging sources being the most common. The TX-PSD1 provides an open-collector SLAVE output to control other modules or equipment when a paging signal is detected.

NOTE: Radio Design Labs' PS-24AS power supply is NOT included but is required in order to power this product.  Please see the "Accessories" tab or click here for more information on the PS-24AS power supply.

The amplified audio source is connected using a detachable terminal block. A front panel switch is provided to select the source type: 25 V, 70 V or 100 V. The 25 V setting may be used for an 8 ohm, 75 Watt maximum, amplified source. Input sensitivity is adjusted on a single-turn trimmer. In the clockwise position, the SENSITIVITY trigger threshold is 30 dB below the switch-selected constant voltage. A red LED illuminates whenever the audio level exceeds the trigger threshold, facilitating the sensitivity adjustment.

The module is triggered when the audio exceeds the threshold and it remains triggered for a defined time duration after the audio falls below the threshold. This DELAY is adjustable from 3 to 25 seconds using a front panel trimmer. Adjustment is simplified by a green LED that remains illuminated while the module is triggered. The SLAVE terminal may be used as either an input or output control terminal. When the module is triggered, the SLAVE terminal is internally pulled to ground through an open collector. If the TX-PSD1 SLAVE terminal is externally pulled to ground through a switch or the open-collector terminal of another RDL module, the relay will energize until the terminal is released.

A blue POWER LED illuminates when the TX-PSD1 is powered from an external 24 Vdc power supply. Use the TX-PSD1 to control RDL modules or other equipment with ground activated control inputs that permit a 24 V pull up.

Radio Design Labs TX-PSD1 Features:

  • Switching Functions Controlled by Speaker-Level Source
  • Input Accepts Amplified Constant Voltage Signals
  • Switch-Selectable Input: 25 V, 70 V, 100 V
  • LED Indicates when Module is Triggered
  • Release Delay Adjustable from 3 to 25 Seconds
  • Open-Collector Output Active when Module is Triggered
  • 25 Volt Input Also Accepts 8 O Inputs up to 75 Watts
  • Transformer-Isolated Input
  • Front Panel Trimmer Provides Sensitivity Adjustment
  • Signal Threshold LED Facilitates Sensitivity Adjustment
  • Front-Panel Trimmer Provides Release Delay Adjustment
  • Switches on Paging or Any Other Amplified Audio Signal

Radio Design Labs TX-PSD1 Specifications:

  • Audio Input: Constant-voltage speaker line, transformer-coupled
  • Input Level: Switch-selectable 25 V, 70 V, 100 V
  • Detection Bandwidth: 120 Hz to 7.5 kHz (-3 dB)
  • Trigger Threshold: -40 dB to -15 dB (below 25 V, 70 V or 100 V), adjustable (single turn)
  • Release Delay: 3 seconds to 25 seconds, adjustable (single turn)
  • Control Output: Open collector @ 25 mA (SLAVE terminal)
  • Indicators (3): Power (blue LED), Threshold (red LED), Triggered (green LED)
  • Power Requirement: 24 to 33 Vdc @ 20 mA*, Ground referenced
    *Plus loadcurrent connected to SLAVE output
