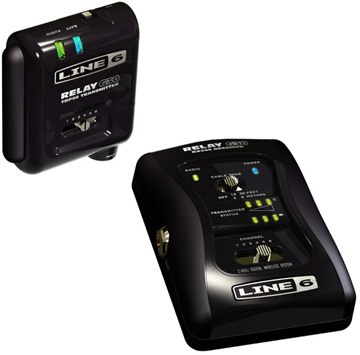

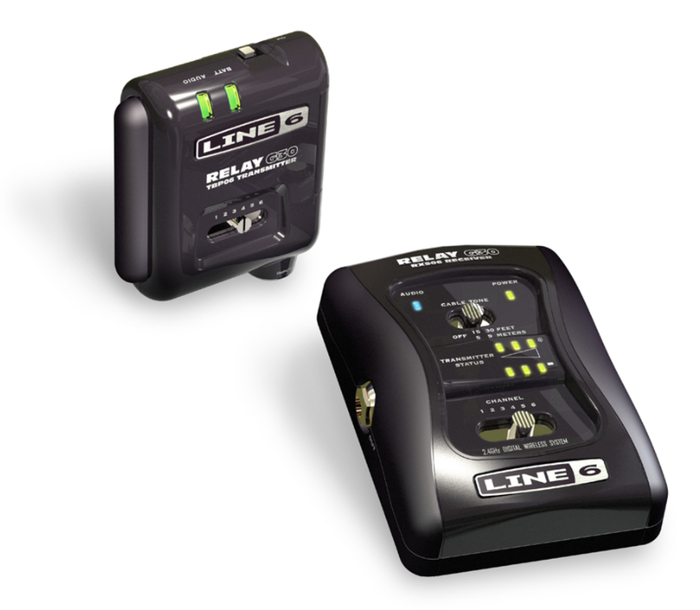

Line 6 Relay G30
Digital Wireless Guitar System

OUR PART #:  RELAY-G30

The Line 6 Relay G30 digital guitar wireless system delivers wired tone, dependability, and simple operation.
Learn More
Our Price: $199.99
List Price: $279.99
You save 29%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Line 6 Relay G30
Qty:
In Stock

Similar Products

The Line 6 Relay G30 digital guitar wireless system delivers wired tone, dependability, and simple operation.

Wired Tone

The exclusive VWT (Virtual Wire Transmission) technology ensures full-range frequency response, excellent transient response, and wide dynamic range.  The Line 6 Relay G30 also features cable tone simulation for switching between a cable and wireless system without having to adjust the tone setting on the amplifier.  Line 6's Relay G30 is also compander free, which enables the Relay to deliver high-end and low-end sounds, as well as touch response that cannot be found with analog systems.

Dependability

The DCL (Digital Channel Lock) technology automatically locks out all source of interference.  The Relay system broadcasts in the 2.4GHz band, which avoids interferences caused by TV stations, cell phone towers, and other high-powered sources.

Simple Operation

All channels in the Relay system work at all times, and there is no need to scan for open channels.

Line 6 Relay G30 Specifications:

  • Transmission Format: Line 6 proprietary digital audio transmission
  • Frequency Response: 10Hz - 20kHz
  • Dynamic Range: 118dB
  • RF Carrier Frequency: 2.4GHz
  • Compatible Channels: 6
  • Transmission Range: 100ft line-of-sight (may vary due to local conditions)
  • FCC Approval: Part 15 approved, no user-license required

TBP06 Transmitter Specifications:

  • A/D Conversion: 24-bit Delta Sigma, 128 times oversampling
  • Input Impedance: 1.3 M-Ohm
  • Connectors: 1/4-inch unbalanced input
  • Controls: Power On/Off, Channel Select
  • LEDs Display: Power, Audio status
  • LCD Display: n/a
  • Battery Life: Approx. 8 hours (2x AA alkaline batteries)

RXS06 Receiver Specifications:

  • D/A Conversion: 24-bit Delta Sigma, 128 times oversampling
  • Connections: 1/4-inch output
  • LEDs Display: Power on, Date link, Audio status
  • LCD Displays: n/a
  • Controls: Power On/Off, Channel select, Cable tone simulator
  • Power Requirements: DC-1g power supply (9VDC)
Receiver for Line 6 Relay G30
Line 6 RXS06 Receiver for Line 6 Relay G30
The RXS06 is a receiver for the Line 6 Relay G30 system.  It can be used as a replacement or to expand a system.  It features 6 channels, 24-bit conversion, 128x oversampling, and a top-mounted channel selector. An internal ...
129.99 181.99 29

Usually ships in 7-14 business days.
Need it sooner? Call us!
Free Shipping Available
Line 6 Relay TBP06 Wireless Transmitter for Relay G30 Wireless Guitar System
Line 6 TBP06 Line 6 Relay TBP06 Wireless Transmitter for Relay G30 Wireless Guitar System
The Line 6 TBP06 is a direct replacement for the transmitter that comes with the Relay G30 system. These are universal within the G30 line, so there's no need to worry about matching up frequencies like you would with old analog ...
89.99 125.99 29

Usually ships in 7-14 business days.
Need it sooner? Call us!
Free Shipping Available
Unidirectional Headset Microphone for XD-V30
Line 6 HS30 Unidirectional Headset Microphone for XD-V30
The Line 6 HS30 unidirectional headset microphone is a great wireless component for active performers that need to keep their hands free. The HS30 features an integrated unidirectional condenser microphone that provides ...
69.99 97.99 29

Usually ships in 7-14 business days.
Need it sooner? Call us!
Free Shipping Available
Lavalier Condenser Microphone with 1/4-inch Jack
Line 6 LM4-4 Lavalier Condenser Microphone with 1/4-inch Jack
Line 6's LM4-4 is a unidirectional cardioid microphone for use with their TBP06 beltpack transmitter and XD-V30L digital wireless microphone system. Line 6 LM4-4 Includes: Tie-clip WindscreenLine 6 LM4-4 Specifications: Polar ...
49.99 69.99 29

Usually ships in 7-14 business days.
Need it sooner? Call us!
2 ft Premium Guitar Cable for Relay G30 Wireless System with 1/4" Right-Angle Connector
Line 6 G30CBL-RT 2 ft Premium Guitar Cable for Relay G30 Wireless System with 1/4" Right-Angle Connector
The Line 6 G30CBL-RT is a 2 ft premium guitar cable for their Relay G30 wireless system that's made with Mogami wire and features 1/4" right-angle and straight connectors. Line 6 Model #: LIN-0-980330024
29.99 41.99 29

Usually ships in 7-14 business days.
Need it sooner? Call us!
2 ft Premium Guitar Cable for Relay G30 Wireless System
Line 6 G30CBL-ST 2 ft Premium Guitar Cable for Relay G30 Wireless System
The Line 6 G30CBL-ST is a 2 ft premium guitar cable for their Relay G30 wireless system that's made with Mogami wire and features 1/4" connectors. Line 6 Model #: LIN-0-980330023
24.99 34.99 29

Usually ships in 7-14 business days.
Need it sooner? Call us!
