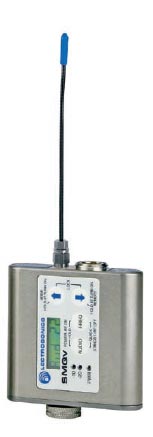

Lectrosonics SMQV
Super Mini Transmitter

OUR PART #:  SMQV

To meet the demand for both extended operating range and extended battery life, the “V” series SM transmitters offer selectable output power of 100 or 250 mW.
Learn More
Selected Model Price: $1,439.00
List Price: $1,975.00
Save up to 27%!
Write the first review.
Lectrosonics SMQV
Select a Model: (shipping times are approximate)

Related Products

To meet the demand for both extended operating range and extended battery life, the “V” series SM transmitters offer selectable output power of 100 or 250 mW. A third selection at 50 mW is provided for some theatrical applications where the system design specifies lower transmitter power.

The input section features the unique servo bias input circuitry with a standard TA5M type jack for use with electret lavaliere mics, dynamic mics, or line level signals. A DSP-controlled analog audio limiter is employed before the A-D converter. The limiter has a range of more than 30 dB for excellent overload protection and a dual release envelope that makes the limiter acoustically transparent while maintaining low distortion. The limiter recovers quickly from brief transients, with no audible side effects, and also recovers slowly from sustained high levels to keep audio distortion low while preserving short term dynamics.

The SMQV super mini transmitter features:

  • Digital Hybrid Wireless™  Technology*
  • Variable, selectable power output:
    50, 100, 250mW
  • Membrane switch control panel with LCD display
  • 256 synthesized UHF frequencies
  • Wide input dynamic range
  • DSP based pilot-tone signal
  • Circulator/Isolator output stage
  • Splash-proof, machined aluminum housing
  • Non-corrosive, superhard finish

Specifications: see attached Specification PDF.

Consumer Alert

This particular wireless microphone device operates in portions of the 617-652 MHz or 663-698 MHz frequencies. Beginning in 2017, these frequencies are being transitioned by the Federal Communications Commission (FCC) to the 600 MHz service to meet increasing demand for wireless broadband services. Users of this device must cease operating on these frequencies no later than July 13, 2020. In addition, users of this device may be required to cease operations earlier than that date if their operations could cause harmful interference to a 600 MHz service licensee’s wireless operations on these frequencies. For more information, visit the FCC’s wireless microphone website at www.fcc.gov/wireless-microphones-guide or call the FCC at 1- 888-CALL-FCC (TTY: 1-888-TELL-FCC).
