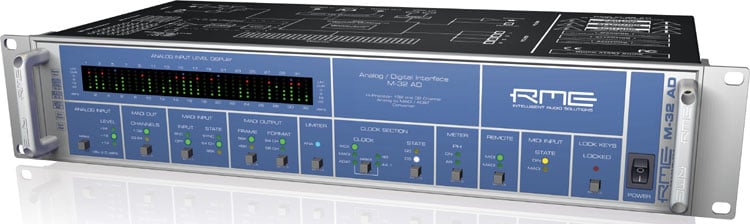

RME M32AD
Converter Analog to MADI/ADAT

OUR PART #  M32AD

Our Price: $4,999.00
List Price: $5,599.00
You save 11%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

The M-32 AD is a 32-channel high-end AD converter, easy to operate yet having a comprehensive feature set. The unit combines excellent analog circuit design with the latest converter chips and RME's superior SteadyClock, resulting in a state-of-the-art AD conversion. The M-32 provides multichannel conversion in reference quality - at an unbeatable price/performance ratio.

The unit's unique set of features includes analog limiters, three hardware reference levels up to +24 dBu, MADI and ADAT I/O up to 192 kHz, 6.3 mm TRS and D-sub inputs, remote control via MIDI, and operation across a wide range of mains voltages, all packed into a 2U enclosure. An extraordinary limiter, conceived and optimised for professional studio, stage, and broadcast applications, offers essential operational safety with its capability to limit an input's overload of up to 17 dB without audible distortion (max. input level + 30 dBu).

Features:

  • 32-channel AD converter, fully symmetrical design, 116 dBA
  • 19" enclosure with only 2 units height
  • 1 x MADI I/O, 32 chanels @ 96 kHz, 16 channels @ 192 kHz
  • 4 x ADAT Out, 16 channels @ 96 kHz, 8 channels @ 192 kHz
  • Zero Delay MADI I/O: no delay compensation necessary when stacking units
  • Analog limiter can be activated
  • 32 LED level meters with 5 LEDs each
  • 32 LEDs to display the Limiter state per channel
  • SteadyClock(TM) - prestine sound quality independently from the quality of the external clock signal
  • SyncCheck® - unique technology to check clock synchronization
  • All settings are stored permanently
  • Fully remote controllable via MIDI and MIDI over MADI

Specifications:

  • Input AD: 1/4" TRS jack and 25 pin D-sub, servo balanced, completely symmetrical audio path
  • Output AD: 4 x ADAT optical, 1 x MADI optical/coaxial
  • Dynamic Range AD: 113 dB RMS unweighted, 116 dBA
  • THD AD: < -110 dB (< 0.00032 %)
  • THD+N AD: < -104 dB (< 0.00063 %)
  • Crosstalk AD: > 130 dB
  • Input level for 0 dBFS: +24 dBu, +19 dBu, +13 dBu
  • Frequency response AD, -0.1 dB: 10 Hz - 23.2 kHz (sf 48 kHz)
  • Frequency response AD, -0.5 dB: < 5 Hz - 45 kHz (sf 96 kHz)
  • Frequency response AD, -1 dB: < 5 Hz - 80 kHz (sf 192 kHz)
  • Sample rates: 44.1, 48, 88.2, 96, 176.4, 192 kHz, variable (Sync/WC)
  • Jitter: Typical < 1 ns for internal, Word Clock, ADAT and MADI input
  • Jitter sensitivity: all PLLs operate error-free even at 100 ns
  • Jitter suppression: > 30 dB (2.4 kHz)
  • Power supply: Internal switching mode PS, 100V - 240V AC, 60 Watt
  • Dimensions: (WxHxD) 483 x 88 x 200 mm

Click to download

RME M32AD
Converter Analog to MADI/ADAT

OUR PART #  M32AD

Product Information:

The M-32 AD is a 32-channel high-end AD converter, easy to operate yet having a comprehensive feature set. The unit combines excellent analog circuit design with the latest converter chips and RME's superior SteadyClock, resulting in a state-of-the-art AD conversion. The M-32 provides multichannel conversion in reference quality - at an unbeatable price/performance ratio.

The unit's unique set of features includes analog limiters, three hardware reference levels up to +24 dBu, MADI and ADAT I/O up to 192 kHz, 6.3 mm TRS and D-sub inputs, remote control via MIDI, and operation across a wide range of mains voltages, all packed into a 2U enclosure. An extraordinary limiter, conceived and optimised for professional studio, stage, and broadcast applications, offers essential operational safety with its capability to limit an input's overload of up to 17 dB without audible distortion (max. input level + 30 dBu).

Features:

  • 32-channel AD converter, fully symmetrical design, 116 dBA
  • 19" enclosure with only 2 units height
  • 1 x MADI I/O, 32 chanels @ 96 kHz, 16 channels @ 192 kHz
  • 4 x ADAT Out, 16 channels @ 96 kHz, 8 channels @ 192 kHz
  • Zero Delay MADI I/O: no delay compensation necessary when stacking units
  • Analog limiter can be activated
  • 32 LED level meters with 5 LEDs each
  • 32 LEDs to display the Limiter state per channel
  • SteadyClock(TM) - prestine sound quality independently from the quality of the external clock signal
  • SyncCheck® - unique technology to check clock synchronization
  • All settings are stored permanently
  • Fully remote controllable via MIDI and MIDI over MADI

Specifications:

  • Input AD: 1/4" TRS jack and 25 pin D-sub, servo balanced, completely symmetrical audio path
  • Output AD: 4 x ADAT optical, 1 x MADI optical/coaxial
  • Dynamic Range AD: 113 dB RMS unweighted, 116 dBA
  • THD AD: < -110 dB (< 0.00032 %)
  • THD+N AD: < -104 dB (< 0.00063 %)
  • Crosstalk AD: > 130 dB
  • Input level for 0 dBFS: +24 dBu, +19 dBu, +13 dBu
  • Frequency response AD, -0.1 dB: 10 Hz - 23.2 kHz (sf 48 kHz)
  • Frequency response AD, -0.5 dB: < 5 Hz - 45 kHz (sf 96 kHz)
  • Frequency response AD, -1 dB: < 5 Hz - 80 kHz (sf 192 kHz)
  • Sample rates: 44.1, 48, 88.2, 96, 176.4, 192 kHz, variable (Sync/WC)
  • Jitter: Typical < 1 ns for internal, Word Clock, ADAT and MADI input
  • Jitter sensitivity: all PLLs operate error-free even at 100 ns
  • Jitter suppression: > 30 dB (2.4 kHz)
  • Power supply: Internal switching mode PS, 100V - 240V AC, 60 Watt
  • Dimensions: (WxHxD) 483 x 88 x 200 mm

Click to download
