RME M16DA
Converter MADI/ADAT to Analog

OUR PART #:  M16DA

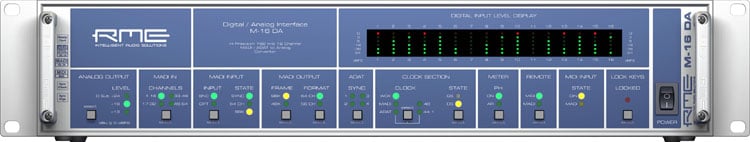

The M-16 DA is a 16-channel high-end DA converter, easy to operate yet having a comprehensive feature set.
Learn More
Our Price: $3,899.00
List Price: $4,299.00
You save 9%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

RME M16DA
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The M-16 DA is a 16-channel high-end DA converter, easy to operate yet having a comprehensive feature set. The unit combines excellent analog circuit design with the latest converter chips and RME's superior SteadyClock, resulting in a state-of-the-art DA conversion. The M-16 DA extends RME's MADI line with multichannel conversion in reference quality - at an unbeatable price/performance ratio!

The M-series converters have been conceived and optimised for professional studio, stage, and broadcast applications. Combinations of the M-16 DA and M-32 DA converters allow for setups with 16, 32, 48, or 64 channels, according to your individual application or budget. The unit's unique set of features includes three hardware reference levels up to +24 dBu, MADI I/O and ADAT input up to 192 kHz, 6.3mm TRS and D-sub outputs, remote control via MIDI, and operation across a wide range of mains voltages, all packed into a 2U enclosure.

Features:

  • 16-channel DA converter, balanced output
  • 19" enclosure with only 2 units height
  • 1 x MADI I/O (optical and coaxial)
  • 4 x ADAT In (TOSLINK)
  • Zero Delay MADI I/O: no delay compensation necessary when stacking units
  • 16 LED level meters with 6 LEDs each
  • SteadyClock(TM) - prestine sound quality independently from the quality of the external clock signal
  • SyncCheck┬« - unique technology to check clock synchronization
  • Noise suppression on power-on and power-off at the analog outputs
  • All settings are stored permanently
  • Fully remote controllable via MIDI and MIDI over MADI

Specifications:

  • Input DA: 4 x ADAT optical, 1 x MADI optical/coaxial
  • Output DA: 1/4" TRS jack servo balanced, up to +21 dBu. 25 pin D-sub, balanced, up to +24 dBu
  • Dynamic Range DA (SNR): 114 dB RMS unweighted, 118 dBA
  • THD DA: < -104 dB (< 0.00063%)
  • THD+N DA: < -100 dB (< 0.001%)
  • Crosstalk DA: > 110 dB
  • Frequency response DA, -0.5 dB: 5 Hz - 22 kHz (sf 48 kHz)
  • Frequency response DA, -0.5 dB: < 5 Hz - 34 kHz (sf 96 kHz)
  • Frequency response DA, -1 dB: < 5 Hz - 50 kHz (sf 192 kHz)
  • Input level for 0 dBFS: +24 dBu, +19 dBu, +13 dBu
  • Sample rates: 44.1, 48, 88.2, 96, 176.4, 192 kHz, variable (Sync/WC)
  • Jitter: Typical < 1 ns for internal, Word Clock, ADAT and MADI input
  • Jitter suppression: >30 dB (2.4 kHz)
  • Jitter sensitivity: all PLLs operate error-free even at 100 ns
  • Power supply: Internal switching mode PS, 100V - 240V AC, 60 Watt
  • Dimensions: (WxHxD) 483 x 88 x 200 mm
