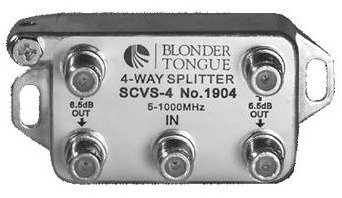

Blonder-Tongue SCVS-4
Splitter, 4-way, L-style

OUR PART #:  SCVS-4

This L-style splitter features a soldreed back and corrosion-resistant die-cast housing.
Learn More
Our Price: $3.53
Write the first review.
Blonder-Tongue SCVS-4
Qty:
Usually ships in 7-14 business days.

Related Products

This L-style splitter features a soldreed back and corrosion-resistant die-cast housing.

Features:

  • Superior Performance to 1000 MHz
  • Die Cast Housing
  • RFI Shielding 120dB
  • Built- in Ground Block

Specifications:

  • Number of Outputs: 4
  • Frequency Range (MHz): 5-1000
  • Splitter Loss (dB) (max)
      -  5-500 MHz: 7dB
      -  500-860 MHz: 7.5
      -  860-1000MHz: 8
  • Input Return Loss (dB) (min)
      -  5-40 MHz: 16
      -  40-500 MHz: 20
      -  500-860 MHz: 18
      -  860-1000 MHz: 16
  • Isolation Between Outputs (dB) (min)
      -  5-40 MHz: 22
      -  40-500 MHz: 25
      -  500-860 MHz: 25
      -  860-1000 MHz: 22
