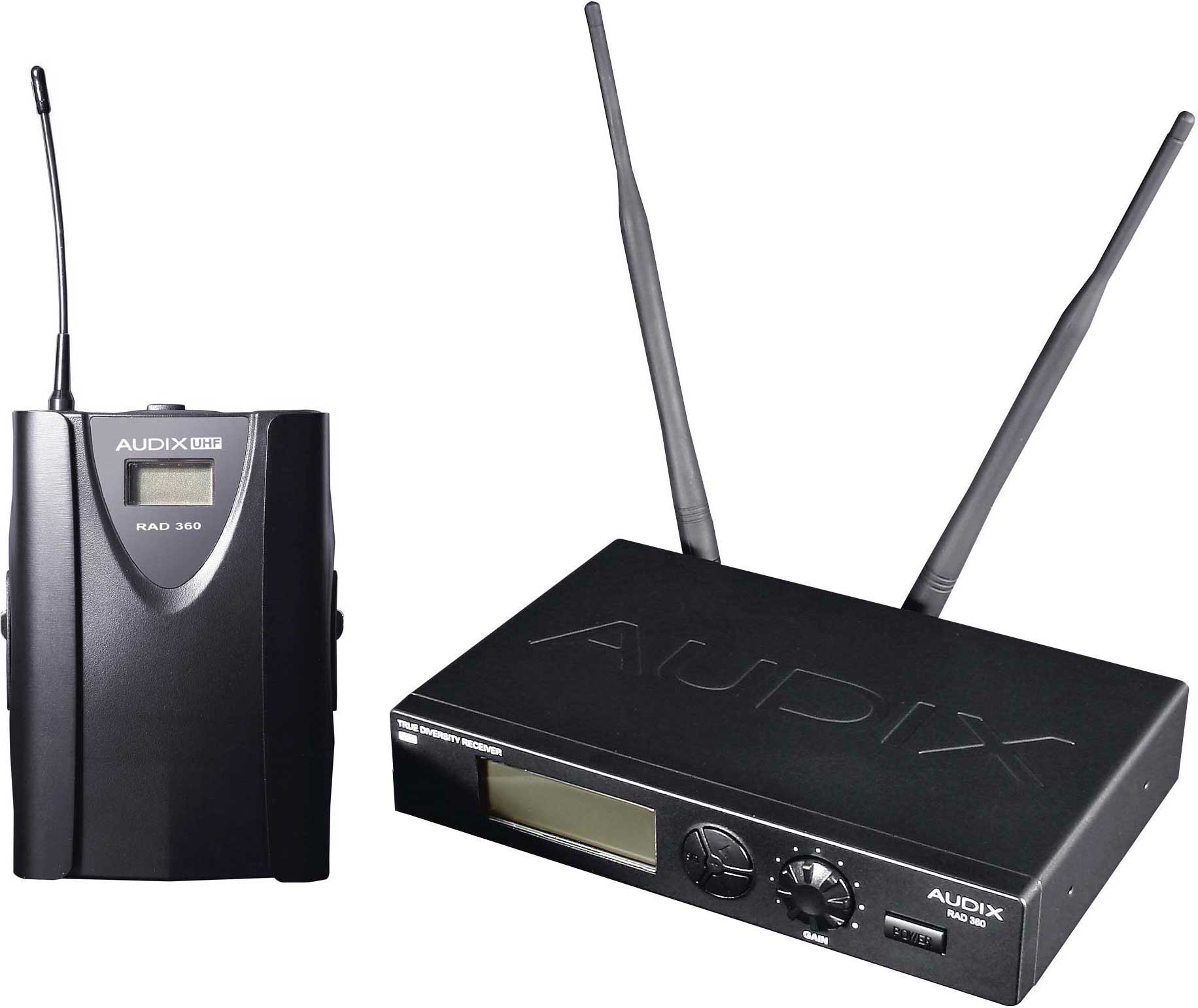

Audix W3-GB
Wireless Bodypack System for Guitar

OUR PART #:  W3-GB

The Audix RAD-360 is a frequency agile UHF wireless microphone system with 193 selectable frequencies and dual tuner, true diversity receivers.
Learn More
Selected Model Price: $579.00
List Price: $685.00
Save up to 15%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Audix W3-GB
Select model: (shipping times are approximate)
Qty:

Similar Products

The Audix RAD-360 is a frequency agile UHF wireless microphone system with 193 selectable frequencies and dual tuner, true diversity receivers. Operating in the UHF band between 638-806 MHz, the RAD-360 is designed for a wide range of professional applications. Users of this wireless must be eligible and licensed under FCC regulation Part 74.832.

The RAD-360 features easy-to-use and easy-to-read menu driven displays in every component of the system. Both the receiver and the transmitter are synthesizer controlled via Phase Locked Loop (PLL) for stable Radio Frequency (RF) signals.

The RAD-360 handheld transmitters are constructed with durable metal housings and feature legendary performance of the OM-series dynamic microphones from Audix - microphones that have set standards in the pro audio industry for clarity, feedback rejection, and dependability. The hand-held transmitters have a convenient gain setting control that will enable a -10, -20, or -30 dB pad to help prevent overload or distortion. The modular design of the threaded capsule housing assembly means that the user can easily change the transmitter mic capsule from one model to another in a matter of seconds.

The body pack transmitter, constructed of durable ABS composite, is housed in a protective metal cradle. It may be used with lavalier, headset, and specialty instrument microphones. A guitar system is also available. Mic/line input adjustments are provided as well as sensitivity/gain control.

The receiver is rack-mountable for either 1 or 2 systems into a standard 19" rack with optional rack mount kits. An optional Amplified Antenna Distribution System (ADS-4) is available, allowing up to 4 systems to be run off a single pair of antennas, and one DC power supply. An optional antenna booster (AB-1), which can be wall-mounted or mic stand mounted, is available to strengthen incoming signals, improve signal to noise ratio, and increase the RF range.

System Features

  • Frequency Agile: All Audix RAD-360 UHF transmitters and receivers can be programmed for 193 frequencies (in increments of .125 Hz) with the 24 MHz band width of the system being utilized. A total of 12-16 systems can be configured to operate simultaneously, depending on the location and environmental conditions.
  • Soft-key Controls: Gain setting and frequency selection are very quick and easy-to-use.
  • Menu Driven Displays: All transmitters and receivers feature menu driven LCD displays, which are back-lit and easy-to-read. Information displayed includes frequency selected, audio signal strength, A/B antenna indicator, mute status, RF indicator, battery indicator, audio levels, and lock/unlock status.
  • Noise Squelch Circuitry: Analyzes signal quality instead of signal strength. Controls the possibility of annoying sudden "bursts" coming through the receiver.
  • Surface Acoustic Wave (S.A.W.) Filters: Help to insure that the system is free from RF interference.
  • Tone Key Squelch: Eliminates unwanted noise from entering the system.
  • Tuned Antennas: 3/4 Wave antennas are tuned to specific frequencies for RF stability.
  • Audio Output: The rear receiver panel includes both balanced (XLR) and unbalanced (1/4") output jacks.
  • RF Level Meters: Monitors signal strength and optimizes transmitter gain settings.
  • Battery Power Indicators: Battery power levels can be read from both the receiver and the transmitter.
  • Set and Lock Function: Easy to use switches allow frequencies to be easily changed, set, and locked.
  • Sensitivity Adjustment: Handheld transmitters feature additional PAD settings of -10 dB, -20 dB and -30 dB.
  • Interchangeable Head Assemblies: The RAD-360 handheld transmitters feature simple-to-change threaded capsule assemblies. Change or replace capsules in a matter of seconds.
  • Durable Metal Housings: All three components of the RAD360 - receiver, handheld transmitter, and body pack feature metal housings for additional RF shielding and shock resistance.

System Specifications

  • Frequency Range: 638-804 MHz
  • Switchable Frequencies: 193 (per system group of 24 MHz spaced .125 Hz apart)
  • Frequency Response: 40Hz-18kHz (depending on capsule)
  • Signal To Noise Ratio: >110dB
  • Compander System: HDX
  • Pilot Tone: 32.768 kHz

RAD360-R Specifications

  • Receiving System: Dual tuners, true diversity receiver
  • Image Rejection: 50dB nominal, 45dB minimum
  • Signal-To-Noise Ratio: 110dB at 30kHz deviation (IEC-weighted), maximum modulation 75kHz
  • Total Harmonic Distortion: </=1% (10kHz deviation at 1kHz)
  • Sensitivity: 26 dBµV (S/N 60dB at 5kHz deviation, IEC-weighted) <2.5µV
  • Intermediate Frequency: 55.875 MHz, 10.7 MHz
  • Audio Output (AF Level set at "0:)
    Unbalanced: 40mV (at 1kHz, 10kHz deviation, 10k ohm load)
    Balanced: 8mV (at 1kHz, 10kHz deviation, 600 ohm load)
  • Output Connectors
    Unbalanced: 1/4" phone jack
    Balanced: XLR
  • Nominal Peak Deviation
    Balanced: -24 to +18dBu
    Unbalanced: -30 to +12dBu (adjustable in 6dB-steps)
  • Adjacent Channel Rejection: >68dB
  • Intermodulation Spacing: >68dB
  • Image Rejection: >72dB
  • Power Supply: 120V AC 60 Hz; 12-18V DC, 350 mA, with external supply
  • Dimensions (W x H x D): 8.35" x 1.1" x 6.5"
  • Net Weight: 2.32 lbs

RAD360-BP Specifications

  • RF Power Output: 50 mW Max
  • Spurious Emissions: Under federal regulations
  • Input Connector: 3-pin mini-XLR
  • Input Controls: Mic/Line switch, and 20dB potentiometer
  • Battery (not included): 2 x AA 1.5V
  • Current Consumption: 100 mA typical
  • Battery Life: Approximately 12 hours (depending on battery type and usage)
  • Input Impedance
    Mic: 10k ohm
    Line: 1M ohm
  • Max Sound Pressure Level: approx. 128-140dB (depending on mic)
  • Dimensions (W x L x D): 2.8" x 4" x 1"
  • Net Weight (without battery): 7.5 oz
