Studio Technologies M77 Control Console for StudioComm, with Input Groups

The Model 77 is a full-featured control console for use with Studio Technologies Model-76/77 and Model-76D/77 systems. Up to four Model 77s can be connected to a central controller.

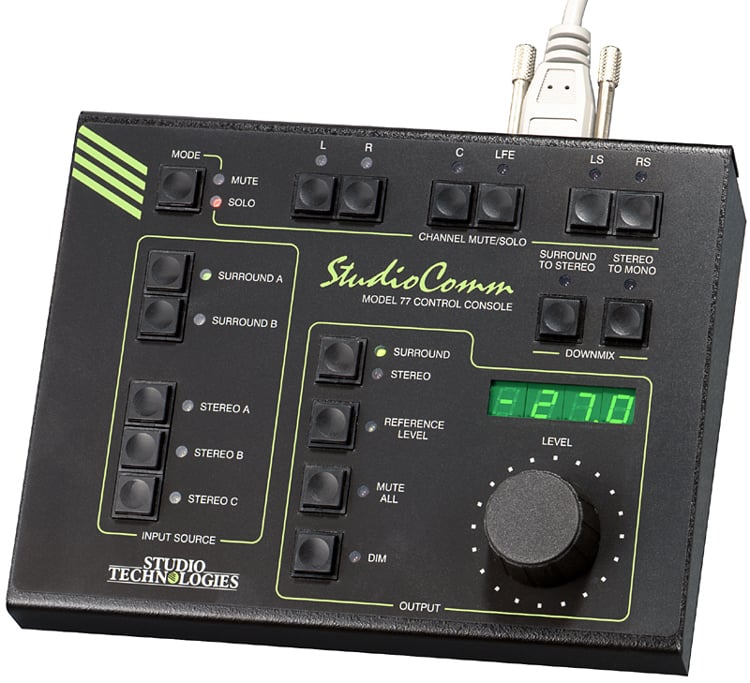

The Model 77 Control Console is designed to be a command center and reside at an operator’s location. It allows fingertip selection of all monitoring functions. Numerous LED indicators provide complete status information. Up to six unique input choices are available. Each of the choices can be configured from the system’s two surround (5.1) and three stereo (2-channel) inputs. The configuration mode also allows stereo inputs A and B to be used as either stereo or dual monaural sources. This can be especially useful in broadcast applications where a 2-channel AES3id source may carry two independent monaural signals.

A large, easy-to-use rotary digital encoder provides control of the surround monitor output level in precise 0.5-dB steps. A 4-digit numeric display indicates the monitor output or dialnorm level in real time. The monitor output level can be adjusted via the rotary level control, the reference level function, or by way of the dialnorm information included in Dolby E metadata (refer to "Dialnorm Support").

Specifications:

• Application: up to four Model 77 Control Consoles can be connected to Model 76 or 76D Central Controller
• Power: 12 volts DC, maximum current 100 milliamperes, provided by Model 76 or 76D Central Controller
• Control Data:
  • Type: RS-485
  • Data Rate/Format: 115.2 kbit/s, 8-N-1
  • Connector: 9-pin D-subminiature female
• Dimensions (Overall):
  • 7.20 inches wide (18.3 cm)
  • 2.20 inches high (5.6 cm)
  • 5.40 inches deep (13.7 cm)
• Weight: 1.7 pounds (0.8 kg)
