Cartoni P90MA1 P90 Master Pedestal Kit with Master Mk II Fluid Head and 2 Pan Bars

OUR PART #: P90MA1 MFR #: P90MA1

Copied to clipboard

The Cartoni P90 Master two-stage pedestal is designed to support camera/lens combinations up to 198 lbs (90 kg) covering the entire range of Studio and OB configurations. ...Read more

Cartoni P90MA1 P90 Master Pedestal Kit With Master Mk II Fluid Head And 2 Pan Bars Image 1
Cartoni P90MA1 P90 Master Pedestal Kit With Master Mk II Fluid Head And 2 Pan Bars Image 2
Cartoni P90MA1 P90 Master Pedestal Kit With Master Mk II Fluid Head And 2 Pan Bars
Our Price: $35,806.00
List Price: $39,010.00
You save 8%!
Synchrony Music & Sound Card
No Interest if paid in full within 6 Months
Learn How
Item usually available to ship in 9-12 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

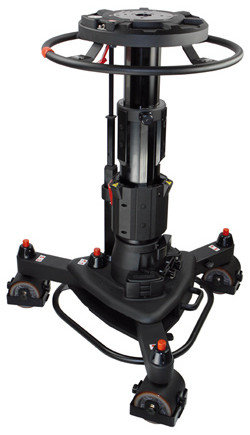

The Cartoni P90 Master two-stage pedestal is designed to support camera/lens combinations up to 198 lbs (90 kg) covering the entire range of Studio and OB configurations.

The system is compact and portable, the 2 stage column performs an on-shot stroke of 74 cm with a smooth and precise movement. The sturdy and yet lightweight dolly is equipped with high precision double wheels interlocked by a special designed chain allowing accurate travelling and steering, even on-shot.

The crab position is also available for narrow door ways. All operating devices and control display are at the cameramen easy access. The pneumatic column works on simple compressed air which can be loaded with a compressor or a simple hand pump. The piston innovative design avoids complicated balance settings.

The system interfaces with all flat base, 4-bore holes heads or any other bowl based head with an adapter.

The Cartoni Master Mk2 is designed most specifically for HD applications, Film, ENG & EFP camera systems.

The Mk2 counterbalances very light cameras from 6.6 lbs (3 kg) all the way to 66 lbs (30 kg) making the Mk2 suitable from the smallest HDV camera to fully loaded RED, Alexa, F65, C300 (etc) cameras with all of the trimmings.

This counterbalance system is an evolution of the patented Cartoni "Wing" system and allows a perfect performance throughout the +/- 90 tilt range, with perfect stops at any angle.

The frictionless variable fluid modules perform a wide variety of fluid drag for the best smooth and precise movement in any shooting situation.

All operating knobs and levers are conveniently located and easy to reach with a special care for user-friendly ergonomics.

The Master Mk2 comes equipped with two telescopic pan bars, standard quick release sliding camera plate, (Euro-style plate optional) illuminated spirit level and digital readouts for drag and counterbalance settings.

The Mk2 has a flat Mitchell standard base and an available 150mm bowl converter to make the Mk2 suitable for all leg options and dollies.

Specifications

  • Cartoni P90 Master Specifications:
    • Capacity: 198 lbs (90 kg)
    • Maximum pressure: 187 psi (13 atm)
    • Total weght: 132 lbs (60 kg)
    • "On-shot" stroke: 29" (74 cm)
    • Steering wheel diameter: 22.6" (57.5 cm)
    • Min height: 28.9" (72 cm)
    • Max height: 57.5" (146 cm)
    • Wheel diameter: 49.2" (125 mm)
    • Doorway tracking width: 31.4" (80 cm)
    • Dolly leg radius: 18.7" (47.5 cm)
    • Column weight: 66 lbs (30 kg)
    • Dolly weight: 66 lbs (30 kg)
  • Cartoni Master Mk II Specifications:
    • Camera capacity: up to 66 lbs (30 kg)
    • Payload capacity:
      • 200 mm (8''): 51 lbs (23 kg)
      • 150 mm (6''): 66 lbs (30 kg)
      • 100 mm (4''): 80 lbs (40 kg)
    • Weight: 18.7 lbs (8.5 kg)
    • Pan range: 360°
    • Tilt range: +/-90°
    • Counterbalance: Continuous
    • Fluid drag: Continuous
    • Bowl diameter: Flat Mitchell/150 mm
    • Temp. range: -40°/+60°C (-40°/+158°F)
