RapcoHorizon Music SDMX3-15
3 Pin DMX Cable w/Label, 15ft


Our Price: $24.58
List Price: $38.83
You save 37%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

DMX is commonly used to control stage lighting and effects. It can also be used to link not only controllers and dimmers, but also more advanced fixtures and special effects devices such as fog machines and moving lights. Rapco Horizons DMX cables are soldered in their facilities by their trained personnel.

This version is a 3 pin DMX Lighting Cable that is 15 feet in length with Switchcraft XLRF to XLRM connectors.

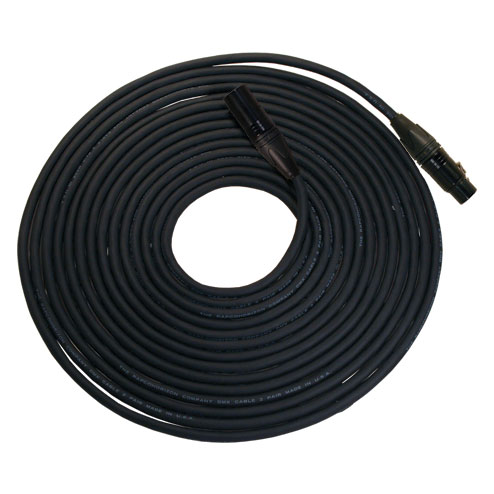

Product shown in image is for illustrative purposes only. Actual product may vary in appearance.


  • 1 pair (for DMX3), 2 pair(for DMX5), 24 gauge conductors
  • Utilizing an overall aluminum/polyester shield and 24 awg 7/32 T.C. drain wire
  • Black matte PVC jacket is very flexible yet durable
  • Quality metal Rapcohorizon, Neutrik or Switchcraft connectors
  • Individually tested for performance and quality


  • Cable: DMX-1PR or DMX-2PR
  • Conductor Gauge: 24 gauge, 1 pair or 2 pair
  • Shield: overall aluminum/polyester and 24 awg 7/32 T.C. drain wire
  • Jacket: Matte PVC
  • O.D.: 0.210" or 0.290"
  • Capacitance: 13.5 pF/ft. @ 1 kHz
  • Cond.-Shield Capacitance: 25 pF/ft. @ 1 kHz
  • Characteristic Impedance: 110ohm NOMINAL
  • D.C. Resistance @ 20┬░C: 25.4ohm/1000'
Add to Cart

We're sorry, only of this item available

Call a Sales Pro at 800-356-5844 for more information
