RapcoHorizon Music SDMX3-50
3 Pin DMX Cable w/Label, 50ft


DMX is commonly used to control stage lighting and effects.
Learn More
Our Price: $27.53
List Price: $55.06
You save 50%!
Write the first review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price


RapcoHorizon Music SDMX3-50
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

DMX is commonly used to control stage lighting and effects. It can also be used to link not only controllers and dimmers, but also more advanced fixtures and special effects devices such as fog machines and moving lights. Rapco Horizons DMX cables are soldered in their facilities by their trained personnel.

This version is a 3 pin DMX Lighting Cable that is 50 feet in length with Switchcraft XLRF to XLRM connectors.

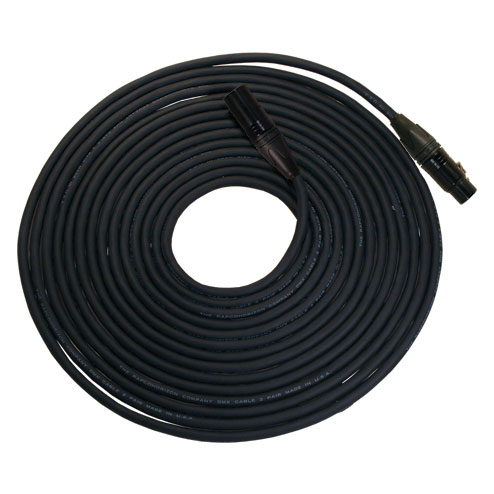

Product shown in image is for illustrative purposes only. Actual product may vary in appearance.


  • 1 pair (for DMX3), 2 pair(for DMX5), 24 gauge conductors
  • Utilizing an overall aluminum/polyester shield and 24 awg 7/32 T.C. drain wire
  • Black matte PVC jacket is very flexible yet durable
  • Quality metal Rapcohorizon, Neutrik or Switchcraft connectors
  • Individually tested for performance and quality


  • Cable: DMX-1PR or DMX-2PR
  • Conductor Gauge: 24 gauge, 1 pair or 2 pair
  • Shield: overall aluminum/polyester and 24 awg 7/32 T.C. drain wire
  • Jacket: Matte PVC
  • O.D.: 0.210" or 0.290"
  • Capacitance: 13.5 pF/ft. @ 1 kHz
  • Cond.-Shield Capacitance: 25 pF/ft. @ 1 kHz
  • Characteristic Impedance: 110ohm NOMINAL
  • D.C. Resistance @ 20┬░C: 25.4ohm/1000'
