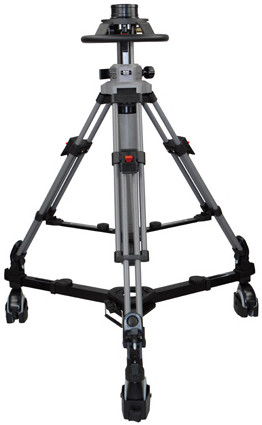

Cartoni P200
P20 Pedestal System with 100mm Ball Base Adapter and A 866 Manual Air Pump

OUR PART #:  P200-CARTONI

The Cartoni P200 is their P20 compact and lightweight pedestal, which is ideal for mobile work and lightweight studio needs.
Learn More

Call for price! Not available online.
List Price: $6,795.00

Similar Products

The Cartoni P200 is their P20 compact and lightweight pedestal, which is ideal for mobile work and lightweight studio needs. The same technical concept which has made their P50 so successful is applied to the Cartoni P200, a rugged and precise dolly with a hexagonally-shaped central pneumatic column for maximum stability, smoothness, and jerk-free operation.

The column supports a maximum payload of 55 lbs (25 kg). It includes an air pressure gauge, locking brake, and safety air pressure valve adjusted at maximum 187 psi. The air pressure inside the column can be set in manually and adjusted to suit the exact weight of the camera configuration.

The foldable dolly features a 6-position track lock, foot-operated brake on each of the 100mm wheel and cable guards. The system includes an A 866 manual air pump.

Cartoni P200 P20 Pedestal System Specifications:

  • Maximum pressure: 187 psi (13 atm)
  • Maximum capacity: 55 lbs (25 kg)
  • Total weight: 31 lbs (14 kg)
  • "On-shot" stroke: 15.7" (40 cm)
  • Steering wheel diameter: 10.2" (26 cm)
  • Min height: 29" (74 cm)
  • Max height: 63.3" (161 cm)
  • Wheels: 3 x 2 coupled
  • Wheel diameter: 3.9" (100 mm)
  • Doorway tracking width min: 26.3" (67 cm)
  • Doorway tracking width max: 38.1" (97 cm)
