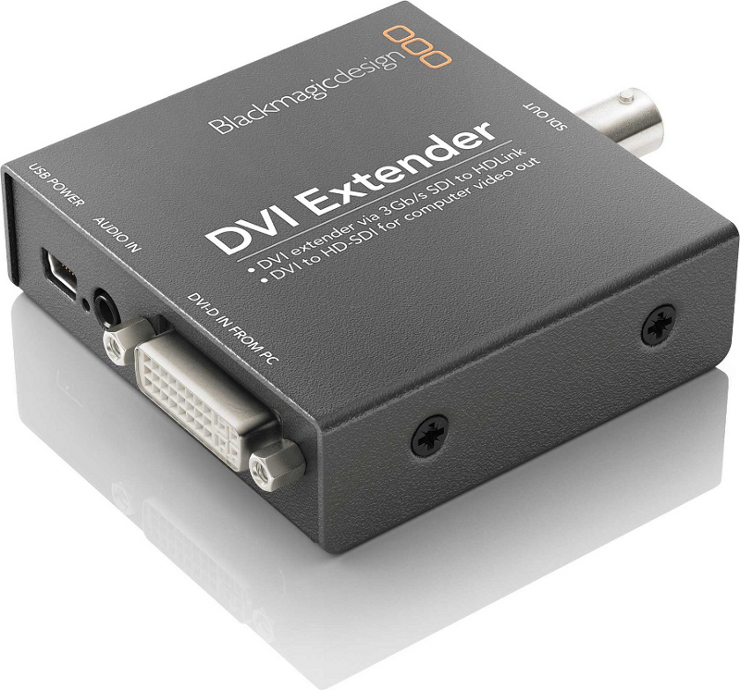

Blackmagic Design DVI Extender
Extender for Computer Monitor via SDI Cable


With the Blackmagic Design DVI Extender, you can extend the DVI-D connection to your computer monitor via simple SDI cables.
Learn More
Our Price: $395.00
Write the first review.
Blackmagic Design DVI Extender
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

With the Blackmagic Design DVI Extender, you can extend the DVI-D connection to your computer monitor via simple SDI cables. Using SDI cable to extend your monitor is perfect because you can route to computer displays anywhere in your facility, or even to more than one monitor if you're using any 3 Gb/s SDI router. DVI Extender also works as a regular DVI to SD/HD-SDI video converter, that's perfect for broadcast graphics.

Imagine the creative freedom to design your facility the way you want. Now you can move noise computers out of client rooms plus you can even have a duplicate computer monitor for your client to watch. DVI Extender is easy to use and plugs into an HDLink Pro or HDLink Optical Fiber converter at the other end of the monitor extension. This means you can use a single monitor for either computer or video monitoring.

DVI Extender includes a standard 3.5mm audio mini jack input so you can connect audio from your computer. That means you get full 3D accelerated graphics and audio from your computer to SDI. That's a perfect solution for digital signage, Flash playback, PowerPoint, gaming and more. Now any software can be output to crystal clear SDI video.

Blackmagic Design DVI Extender Specifications:

  • Video Input: 1x DVI-D
  • Audio Input: 1x 3.5mm stereo mini jack
  • Video Output: 1x 3 Gb/s SD/HD-SDI
  • Video Mode Resolutions:
    • When set to Video mode based resolutions DVI Extender will output conventional SDI video to match the selected video standard.
    • Select 720 x 486 for 525i/59.94 (NTSC), 720 x 576 for 625i/50(PAL), 1280 x 720 for 720HD and 1920 x 1080 for 1080HD video formats
  • USB: 1x USB 2.0 port and cable
  • Power Requirements: USB 2.0 output with 5V power. Compatible with iPod USB power adapter
  • Updates and Configuration: USB 2.0 high speed (480Mb/s) interface
  • Warranty: 12 months
