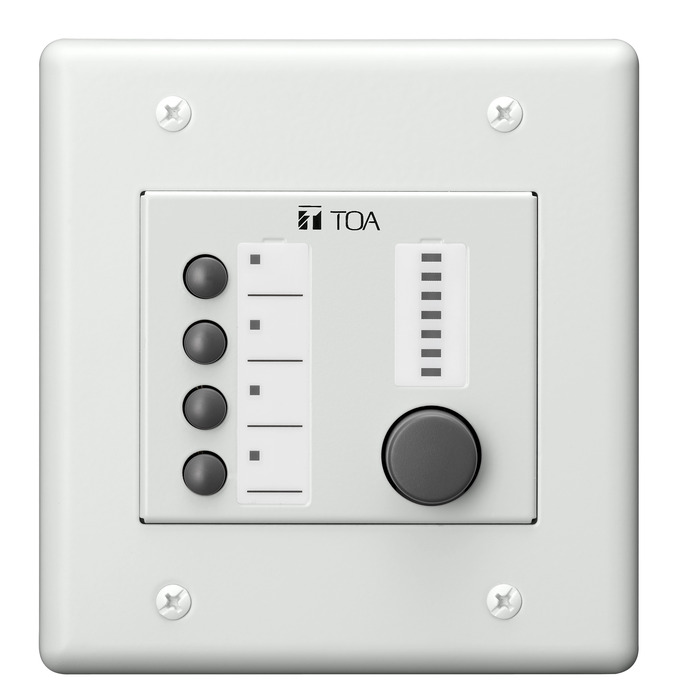

TOA ZM-9014 Assignable 4-Button Remote Control Panel with Volume Control

Expanded hardware option for the TOA 9000M2 Series Mixer/Amplifier. Four assignable buttons, plus assignable column control both with indicators.

Includes:

• Box mounting screw (No.6-32UNC × 30) x4
• Box mounting screw (M4 × 30) x4
• Panel mounting screw x4
• Removable terminal plug (10 pins) x1
• Matching decor plate

Features:

• Fits in standard dual-gang electrical box
• Four assignable buttons each with LED status indicator can control Xpoint settings (on/off, select), paging activation, scene and relay activation
• Assignable ID rotary adjustment on box
• Supplied matching decor plate
• Removable terminal block
• Power Source 24 V DC (supplied from RC-001T or M-864D) Current Consumption 50 mA or less Terminal Removable terminal block (10 pins) Connection Cable Shielded CPEV cable (paired data line and paired power line) or

Specifications:

• Power Source: 24VDC (supplied from RC-001T or M-864D)
• Current Consumption: 50mA or less
• Terminal: Removable terminal block (10 pins)
• Connection Cable: Shielded CPEV cable (paired data line and paired power line) or Category 5 twisted pair cable for LAN (CAT5-STP)
• Operating Section: 4 function buttons, 1 volume control
• Indicator: 4 function indicators (green LEDs), Level indicators (green LEDs)
• Operating Temperature: 0° to +40° (32°F to 104°F)
• Operating Humidity: 35% to 80% RH (no condensation)
• Finish: Surface-treated steel plate, white, paint
• Dimensions: 120mm (W) × 127mm (H) × 58.5mm (D) (4.72" × 5" × 2.3")
• Weight: 300g (0.66lbs)
