Blackmagic Design CONVMCSAUD
SDI to Audio Mini Converter

OUR PART #:  CONVMCSAUD

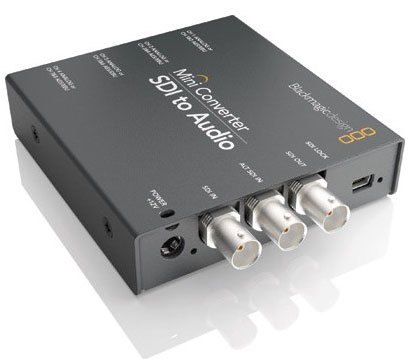

SDI to Audio Mini Converter - Top View
SDI to Audio Mini Converter - Bottom View
SDI to Audio Mini Converter

Click a thumbnail to see more images. (5 total)

Our Price: $185.25
List Price: $195.00
You save 5%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Blackmagic Design CONVMCSAUD
Qty:
In Stock

Similar Products

Blackmagic Design's SDI to Audio Mini Converter includes everything you need to de-embed 4 channels of analog audio or 8 channels of AES/EBU digital audio from any SDI video connection. Now you can easily access the audio in any SDI video connection for output to audio equipment such as audio mixers, analog broadcast decks, audio monitors and more.  Universal power supply included.

Blackmagic Design CONVMCSAUD Specifications:

Connections

  • SDI Video Input: Switchable between SD, HD and 3 Gb/s SDI.
  • SDI Video Output: Automatically matches the SD, HD and 3 Gb/s SDI video input.
  • Analog Video: None
  • Analog Audio: 4 channels of professional balanced analog audio with standard 1/4" jack connections.
  • AES/EBU Digital Audio: 8 channels of professional balanced digital with standard 1/4" jack connections.
  • SDI Redundant Input: Automatically switches over if main SDI input is lost.
  • Multi Rate Support: Auto detection of HD or standard definition SDI inputs.
  • Updates and Configuration: Via USB 2.0 high speed. (480 Mb/s)
  • Reclocking: Yes

Standards

  • SDI Compliance: SMPTE 292M, SMPTE 259M, SMPTE 296M, ITU-R BT.656 and ITU-R BT.601.
  • SDI Video Rates: SDI video connections are switchable between standard definition and high definition.
  • SDI Video Sampling: 4:02:02
  • SDI Audio Sampling: Television standard sample rate of 48 kHz and 24bit.
  • SDI Color Precision: 4:02:02
  • SDI Color Space: YUV
  • SDI Auto Switching: Automatically selects between SD SDI, HD-SDI and3 Gb/s SDI.
  • SDI Format Support: 625/25 PAL, 525/29.97 NTSC, 1080PsF23.98,1080PsF24, 1080PsF25, 1080i50, 1080i59.94, 1080i60, 720p50, 720p59.94 and720p60.
  • Analog Format Support: None
  • Analog Color Space: None
  • Analog Color Precision: None

Extras

  • Software Control: Mac OS X™ and Windows™ software upgrade viaUSB.
  • Internal Software Upgrade: Via included updater application.
  • Settings Control: Mini Switches or USB software.
  • Power Supply: +12V universal power supply included with international socket adapters for all countries. Cable tie point.
  • Power Consumption: 5.52 Watts
  • Operational Voltage Range: 12V
  • Product Warranty: 3 Year Limited Manufacturer's Warranty.
