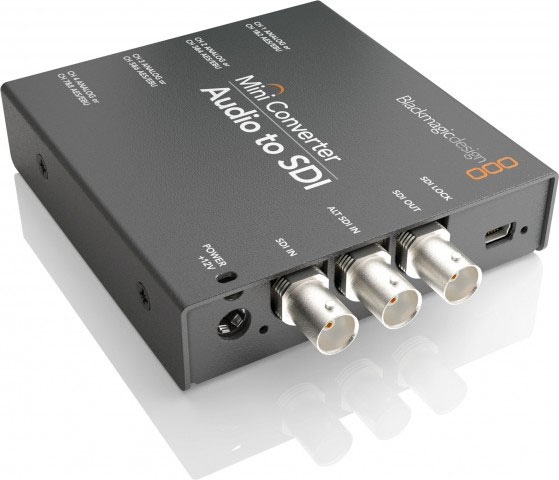

Blackmagic Design CONVMCAUDS
Audio to SDI Mini Converter

OUR PART #:  CONVMCAUDS

Blackmagic Design's Audio to SDI Mini Converter includes everything you need to embed 4 channels of analog audio...
Learn More
Our Price: $185.25
List Price: $195.00
You save 5%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Blackmagic Design CONVMCAUDS
Qty:
In Stock

Similar Products

Blackmagic Design's Audio to SDI Mini Converter includes everything you need to embed 4 channels of analog audio, or 8 channels of AES/EBU digital audio into any SDI video connection. Embed audio from devices such as audio mixers and analog decks into SDI video connections for use with SDI routers and decks or to add extra audio channels to video converters!

Blackmagic Design CONVMCAUDS Specifications:

Connections

  • SDI Video Input: Switchable between SD, HD and 3 Gb/s SDI.
  • SDI Video Output: Automatically matches the SD, HD and 3 Gb/s SDI video input.
  • Analog Video: None
  • Analog Audio: 4 channels of professional balanced analog audio with standard 1/4" jack connections.
  • AES/EBU Digital Audio: 4 channels of professional balanced analog audio with standard 1/4" jack connections.
  • SDI Redundant Input: Automatically switches over if main SDI input is lost.
  • Multi Rate Support: Auto detection of HD or standard definition SDI inputs.
  • Updates and Configuration: Via USB 2.0 high speed. (480 Mb/s)
  • Reclocking: Yes

Standards

  • SDI Compliance: SMPTE 292M, SMPTE 259M, SMPTE 296M, ITU-R BT.656 and ITU-R BT.601.
  • SDI Video Rates: SDI video connections are switchable between standard definition and high definition.
  • SDI Video Sampling: 4:02:02
  • SDI Audio Sampling: Television standard sample rate of 48 kHz and 24bit.
  • SDI Color Precision: 4:02:02
  • SDI Color Space: YUV
  • SDI Auto Switching: Automatically selects between SD SDI, HD-SDI and 3 Gb/s SDI.
  • SDI Format Support: 625/25 PAL, 525/29.97 NTSC, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080i50, 1080i59.94, 1080i60, 720p50, 720p59.94 and 720p60.
  • Analog Format Support: None
  • Analog Color Space: None
  • Analog Color Precision: None

Extras

  • Software Control: Mac OS X™ and Windows™ software upgrade via USB.
  • Internal Software Upgrade: Via included updater application.
  • Settings Control: Mini Switches or USB software.
  • Power Supply: +12V universal power supply included with international socket adapters for all countries. Cable tie point.
  • Power Consumption: 8.40 Watts
  • Operational Voltage Range: 12V
  • Product Warranty: 3 Year Limited Manufacturer's Warranty.
