Avid HDx Option Card (Set of 2)
for VENUE FOH/Mix Rack, 128-Channel Pro Tools HD Interface


Sorry this product is currently out of stock.
Please contact a Sales Pro at 800-356-5844 for alternate options.

Similar Products

Pro Tools|HD Option for FOH Rack or Mix Rack

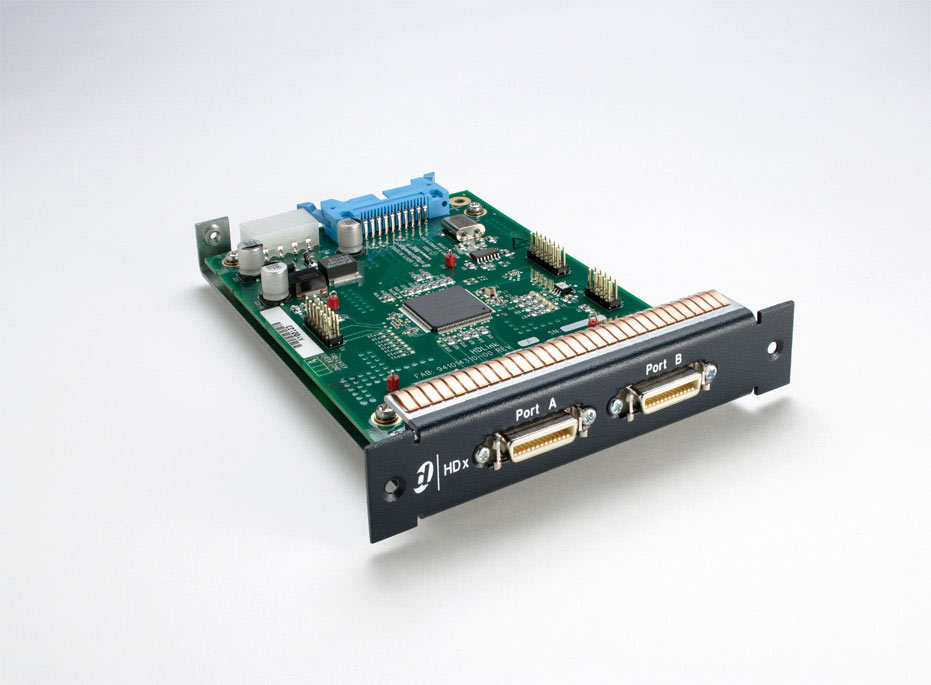

The HDx Option Card for the VENUE FOH Rack or Mix Rack that provides integrated Pro Tools|HD® recording and playback with your VENUE system — no Pro Tools|HD audio interfaces required. Simply use the card to connect your VENUE system to a compatible Windows- or Mac-based computer housing Pro Tools|HD Core and Accel cards.

You can install one HDx Option Card into a Mix Rack for up to 64 channels of recording/playback, and up to two HDx cards into an FOH Rack for up to 128 channels of recording/playback.

With Pro Tools HD software running on the VENUE-connected computer, you can record and archive live performances using your VENUE system as the audio interface, and play back pre-recorded Pro Tools® tracks with the live inputs. You can also perform Virtual Soundcheck — a timesaving process that lets you play back tracks recorded from a previous performance and adjust the mix before the actual performance or rehearsal.


  • Provides a direct digital connection (24-bit/48 kHz) between a VENUE system and a computer with Pro Tools|HD Core/Accel cards and software installed
  • Supports Windows XP- and Mac OS X-based computers
  • Provides DigiLink™ cable connections (cables sold separately)
  • Record up to 128 channels of digital audio (up to 96 Stage inputs and up to 32 assignable channels) to the Pro Tools|HD system with two HDx cards
  • Play back up to 128 Pro Tools tracks directly in VENUE D-Show® software with two HDx cards

Note: The HDx Option Card and FWx Option Card cannot be installed and used simultaneously.
