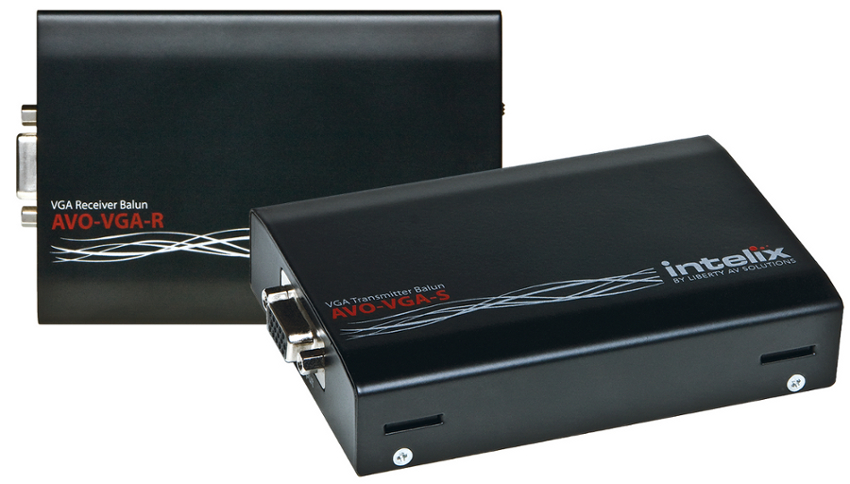

Intelix AVO-VGA
Passive VGA Extender Balun Set

OUR PART #:  AVO-VGA

Intelix's AVO-VGA is the first completely passive VGA balun set with built-in skew correction.
Learn More
Our Price: $107.06
List Price: $118.95
You save 10%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Intelix AVO-VGA
Qty:
In Stock

Similar Products

Intelix's AVO-VGA is the first completely passive VGA balun set with built-in skew correction.  The AVO-VGA transmits VGA video up to 450 feet over standard unshielded twisted pair cable with no power required.  Plus, built-in skew compensation ensures your whites are whiter and your brights are brighter.  The AVO-VGA is ideal for education, government, house of worship, corporate, residential, and any other application requiring extended VGA video distribution.

Intelix AVO-VGA Includes:

  • One pair of AVO-VGA baluns in retail-ready packaging
  • (1) 3' male HD15 to male HD15 VGA cable

Intelix AVO-VGA Specifications:

  • Max Distance:
    • VGA (640 x 480): 450 feet
    • SVGA (800 x 600): 350feet
    • XGA (1024 x 768): 250 feet
    • SXGA (1280 x 1024): 200 feet
  • Bandwidth: DC to 60 MHz
  • Power: No power required
  • Impedance:
    • Input: RGB 75 ohms
    • Output: RGB 100 ohms
  • Input Signals:
    • Video: 1.1 Vp-p
    • Sync: TTL standard, 300 kHz max bandwidth
  • Insertion Loss: Less than 3 dB per pair over the frequency range
  • Return Loss: -15 dB max from DC to 60 MHz
  • Common Mode Rejection:
    • 15 kHz: -60 dB max
    • 100 kHz to 10 MHz: -40dB max
    • 100 MHz: -20 dB max
  • Grounding: Grounding screw for optional use
  • Cable: Cat 5, Cat 5e, Cat 6, and Cat 7 compatible
  • Send Device Connectors: One (1) female HD15 to one (1) shielded RJ45
  • Receive Device Connectors: One (1) female HD15 to one (1) shielded RJ45
  • Enclosure: Shielded metal housing
  • Dimensions: 4.3" x 2.5" x 1.0"
  • Shipping Weight: 1.0 lb.
  • Pin Out:
    • Blue: 7 & 8
    • Red: 1 & 2
    • Green: 4 &5
    • Sync: 3 & 6
  • Temperature:
    • Operating: 32° to 131°F
    • Storage: -4° to 185°F
    • Humidity: up to 95%
  • Warranty: 2 years
