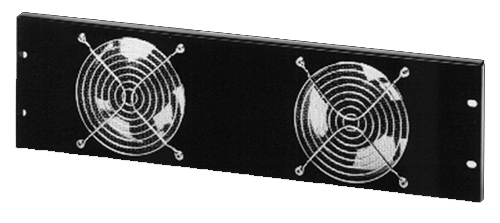

Atlas IED EFP3-2 Fan Panel

Recessed and flush fan panel assemblies dissipate equipment-generated heat quickly from 19" cabinets. Front/rear and top loading assemblies are available in single and dual fan models with 115 CFM fan speed for either flush or recessed mounting. Models are complete with fan(s) protected by nickel chrome plated wire grille backed with a steel wire mesh screen assembled to a 16-gauge CRS panel. Panels mount easily to all E.I.A. standard mounting rails and are stocked in standard black finish. Fans are factory-mounted for exhaust cooling and may be rotated easily, in the field, for intake cooling. A 6 ft. line cord is included.

Features:

• Dual Fans with 115 CFM Rating (Each) Provide for Rapid and Efficient Heat Dissipation
• Recessed Style
• Suitable for Exhaust Cooling or Intake Circulation

Specifications:

• Height: 5 1/4" (13.335 cm)
• Width: 19" (48.26 cm)
• Depth: 2 1/8" (5.3975 cm)
• Shipping Weight: 8.00 lbs (3.63 kgs)
• CFM: 230
• Current Draw: 30 Watts
• Number of Fans: 2
• Rack Spaces: 3
